GOLD LINE Rolling Lobe Air Spring #G2299394200
Stock# 5351072
GOLD LINE™ Rolling Lobe Type Air Springs consist of the rubber bellows, bead plate, piston, and an optional internal bumper. Rolling lobe air springs provide the maximum ride comfort and therefore are the most popular air spring designs for commercial vehicle suspensions. Replaces the following OEM Part Numbers: Fruehauf UCD-9393-2. Suspensions, Inc. 20004, Triangle 8383, Goodyear 1R12-279, Firestone W01-358-9394, Contitech 9 10-19 P 383.
$166.00
SKU
5351072
GOLD LINE™ Rolling Lobe Type Air Springs consist of the rubber bellows, bead plate, piston, and an optional internal bumper. Rolling lobe air springs provide the maximum ride comfort and therefore are the most popular air spring designs for commercial vehicle suspensions.
Replaces the following OEM Part Numbers: Fruehauf UCD-9393-2. Suspensions, Inc. 20004, Triangle 8383, Goodyear 1R12-279, Firestone W01-358-9394, Contitech 9 10-19 P 383.

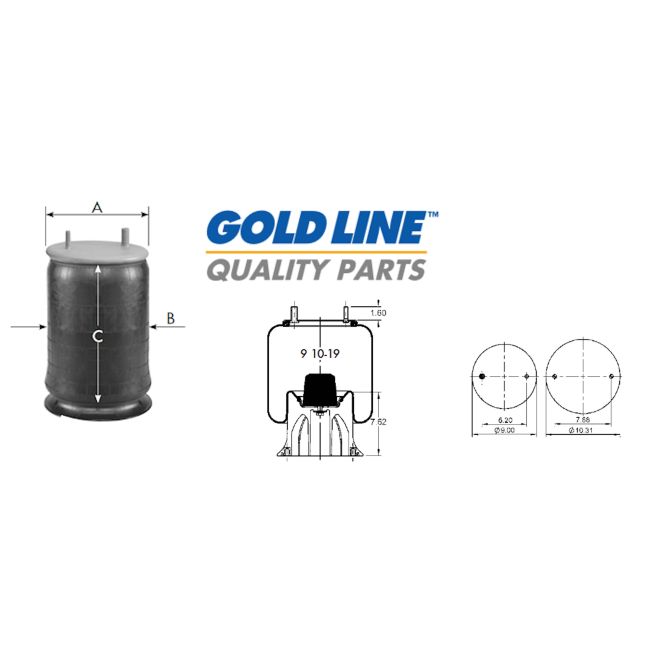

Specifications:
(A) Plate Diameter - 9"
(B) Molded Diameter - 10"
(C) Molded Height - 19"
Air inlet: 1/4” – 18 N.P.T.
Replaces the following OEM Part Numbers: Fruehauf UCD-9393-2. Suspensions, Inc. 20004, Triangle 8383, Goodyear 1R12-279, Firestone W01-358-9394, Contitech 9 10-19 P 383.
Specifications:
(A) Plate Diameter - 9"
(B) Molded Diameter - 10"
(C) Molded Height - 19"
Air inlet: 1/4” – 18 N.P.T.
Load @ 80 psi: 5640
Load @ 100 psi: 7070
Natural Frequency (cpm): 60
Min. Height: 9.8"
Max. Height: 26.5"
Max. Diameter: 12.6"
Load @ 100 psi: 7070
Natural Frequency (cpm): 60
Min. Height: 9.8"
Max. Height: 26.5"
Max. Diameter: 12.6"
Brand
Gold Line
Manufacturer Part Number
G2299394200
