GOLD LINE Rolling Lobe Air Spring #G2299580300
Stock# 5351075
GOLD LINE™ Rolling Lobe Type Air Springs consist of the rubber bellows, bead plate, piston, and an optional internal bumper. Rolling lobe air springs provide the maximum ride comfort and therefore are the most popular air spring designs for commercial vehicle suspensions. Replaces the following OEM Part Numbers: Hendrickson S-20127, Loadguard SC276, Triangle 8434, Goodyear 1R13-118, Firestone W01-358-9580 and Contitech 10 10-21 S 434
SUPPLIES LIMITED
Special Price
$45.00
was
$148.25
SKU
5351075
GOLD LINE™ Rolling Lobe Type Air Springs consist of the rubber bellows, bead plate, piston, and an optional internal bumper. Rolling lobe air springs provide the maximum ride comfort and therefore are the most popular air spring designs for commercial vehicle suspensions.
Replaces the following OEM Part Numbers: Hendrickson S-20127, Loadguard SC276, Triangle 8434, Goodyear 1R13-118, Firestone W01-358-9580 and Contitech 10 10-21 S 434

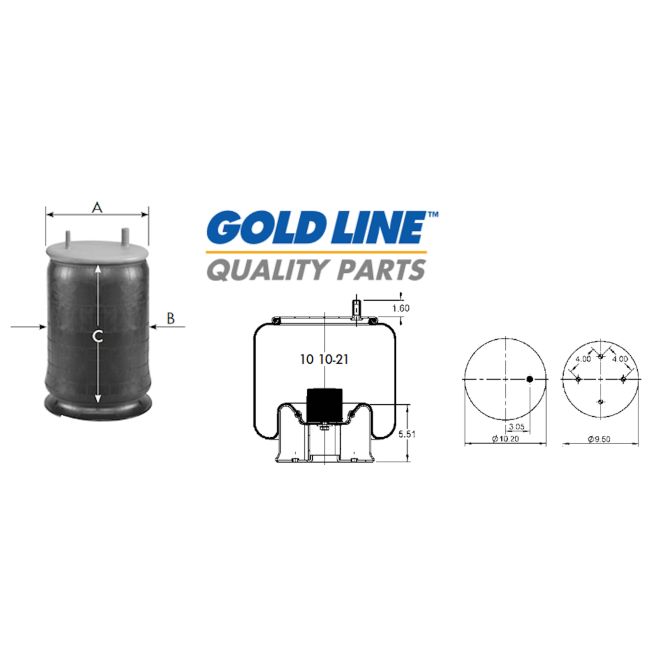

Specifications:
(A) Plate Diameter - 10"
(B) Molded Diameter - 10"
(C) Molded Height - 21"
Air inlet: 1/4” – 18 N.P.T.
Replaces the following OEM Part Numbers: Hendrickson S-20127, Loadguard SC276, Triangle 8434, Goodyear 1R13-118, Firestone W01-358-9580 and Contitech 10 10-21 S 434
Specifications:
(A) Plate Diameter - 10"
(B) Molded Diameter - 10"
(C) Molded Height - 21"
Air inlet: 1/4” – 18 N.P.T.
Load @ 80 psi: 6100
Load @ 100 psi: 7650
Natural Frequency (cpm): 60
Min. Height: 7.5"
Max. Height: 24.6"
Max. Diameter: 13.7"
Load @ 100 psi: 7650
Natural Frequency (cpm): 60
Min. Height: 7.5"
Max. Height: 24.6"
Max. Diameter: 13.7"
SUPPLIES LIMITED
Brand
Gold Line
Manufacturer Part Number
G2299580300
| Product Name | GOLD LINE Rolling Lobe Air Spring #G2299580300 |
|---|
