GOLD LINE Rolling Lobe Air Spring #G2299640400
Stock# 5351064
GOLD LINE™ Rolling Lobe Type Air Springs consist of the rubber bellows, bead plate, piston, and an optional internal bumper. Rolling lobe air springs provide the maximum ride comfort and therefore are the most popular air spring designs for commercial vehicle suspensions. Replaces the following OEM Part Numbers: Hendrickson S-20223,Loadguard SC2758, Triangle 8427, Goodyear 1R12-367, Firestone W01-358-9640 and Contitech 9 10-12 A 427.
SUPPLIES LIMITED
Special Price
$75.00
was
$133.50
SKU
5351064
GOLD LINE™ Rolling Lobe Type Air Springs consist of the rubber bellows, bead plate, piston, and an optional internal bumper. Rolling lobe air springs provide the maximum ride comfort and therefore are the most popular air spring designs for commercial vehicle suspensions.
Replaces the following OEM Part Numbers: Hendrickson S-20223,Loadguard SC2758, Triangle 8427, Goodyear 1R12-367, Firestone W01-358-9640 and Contitech 9 10-12 A 427.

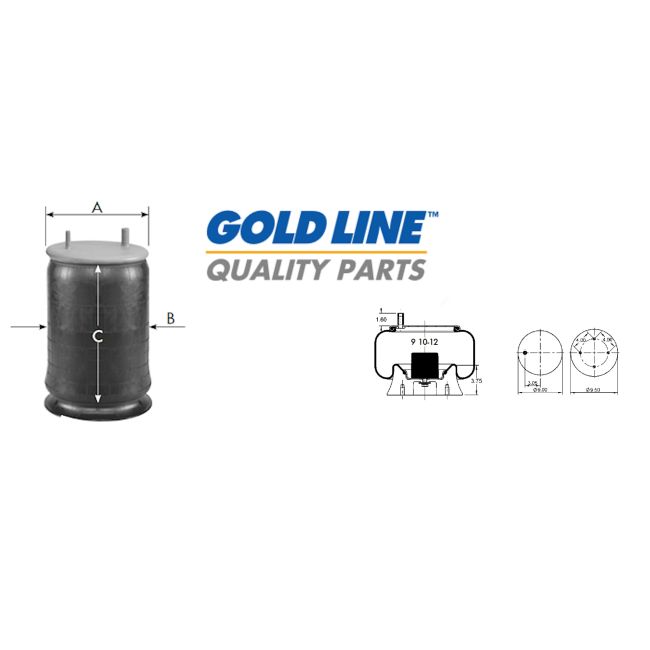

Specifications:
(A) Plate Diameter - 9"
(B) Molded Diameter - 10"
(C) Molded Height - 12"
Air inlet: 1/4” – 18 N.P.T.
Replaces the following OEM Part Numbers: Hendrickson S-20223,Loadguard SC2758, Triangle 8427, Goodyear 1R12-367, Firestone W01-358-9640 and Contitech 9 10-12 A 427.
Specifications:
(A) Plate Diameter - 9"
(B) Molded Diameter - 10"
(C) Molded Height - 12"
Air inlet: 1/4” – 18 N.P.T.
Load @ 80 psi: 5640
Load @ 100 psi: 7050
Natural Frequency (cpm): 82
Min. Height: 5.4"
Max. Height: 15.5"
Max. Diameter: 12.6"
Load @ 100 psi: 7050
Natural Frequency (cpm): 82
Min. Height: 5.4"
Max. Height: 15.5"
Max. Diameter: 12.6"
SUPPLIES LIMITED
Brand
Gold Line
Manufacturer Part Number
G2299640400
