HYDRASTAR Comp. Triple Axle 10" Dac. Slip-On Disc Brake Kit, 3.5k #E3K-TR1SO
Stock# T5426024HS

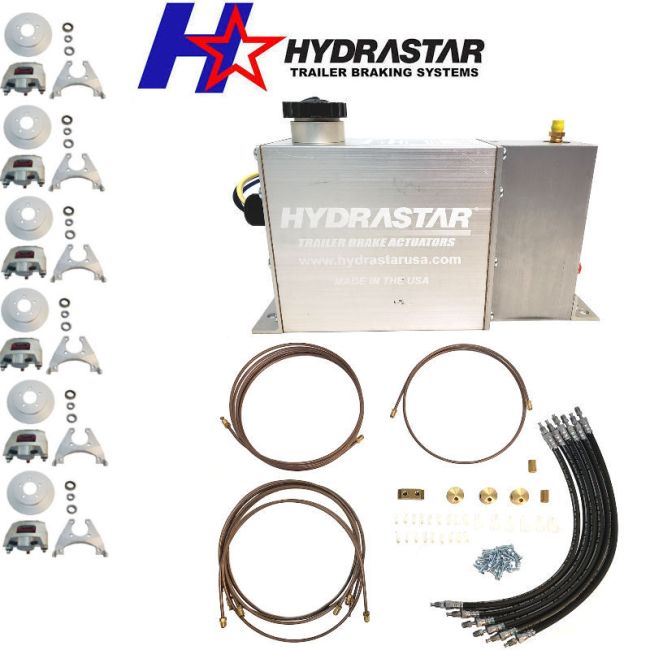

This kit Includes everything to put brakes on your 3,500 lb triple axle trailer with: (6) Hydrastar 10" dacromet coated slip-on style vented rotor and dacromet coated steel caliper, model HBA-16 1600psi disc brake actuator with built in electric reverse back-flow solenoid, 15' NiCopp flexible brake line kit, and mounting hardware. The rotors will come with bearings and grease seals.
Some items ship 'Truck Freight' and are subject to delivery limitations. (Click Truck
for details)
This kit Includes everything to put brakes on your 3,500 lb triple axle trailer with: (6) Hydrastar 10" dacromet coated slip-on style vented rotor and dacromet coated steel caliper, model HBA-16 1,600 psi disc brake actuator with built in electric reverse back-flow solenoid, 15' NiCopp flexible brake line kit, and mounting hardware. The rotors will come with bearings and grease seals.
ROTOR DIAMETER: 10"
REPLACES DRUM DIAMETER: 10"
BEARING SIZE: 1-3/8" x 1-1/16", L68149 x L44649
GREASE SEAL: Double Lip - ID 1.719" / OD 2.565"
# OF STUDS: 5
BOLT CIRCLE: 4-1/2" (14" and 15" Wheels)
AXLE RATING: 3,500 lbs.
The brake line kit includes:
- (1) 188" Long brake line with 3/8"-24 inverted flare nuts
- (1) 76" Long brake line with 3/8"-24 inverted flare nuts
- (4) 48" Long brake line with 3/8"-24 inverted flare nuts
- (6) 21" Male/male rubber flex lines with 3/8"-24 inverted flare nuts
- (3) 3/8" Brass T-fitting
- (1) 3/8" Brass 4-Way-fitting
- (2) 3/8" Brass union fitting
- 1/2" Nylon hose clamps
- 1/4" Nylon hose clamps
- Self-tapping screws
- NiCopp has the strength and structural integrity of steel lines but with the added benefit of being much more corrosion resistant.
The HydraStar™ line of trailer mounted electric over hydraulic brake actuators are unlike mechanical surge actuators, the output from the HydraStar™ actuator is adjustable from the driver's seat. Use the in cab controller to adjust the HydraStar’s output and set up your hydraulic brakes to match the load for the ultimate in control and safety. Ideal for Horse Trailers, Boat Trailers, RV Trailers, Car Haulers, any Trailer with hydraulic brakes. The HydraStar™ HBA-16 has a maximum pressure settings of 1,600 psi. Easily replaces surge, air/hydraulic and vacuum/hydraulic systems. Simply mount the HydraStar™ to the trailer and attach the hydraulic line.
Brake Acutator Features Include:
• Only four wires to connect, 3 wires go to the tow vehicle receptacle, the fourth goes to the breakaway switch
• Works in reverse, no more pins to insert before backing up
• Eliminates brake drag common with surge actuators on down hill grades
• HydraStar installs on trailer with minimal wiring
• Meets or exceeds DOT brake actuator regulations
• Unit mounted bleeder makes bleeding the brake lines easier
• Engages trailer brakes when tow vehicle brake pedal is applied or when the in cab controller
override is activated
• Water tight extruded aluminum enclosure protects the unit in all weather conditions
Regulatory Compliant
• Fully compliant with CFR-393 federal braking requirements
• Includes detailed instruction manual
Note that the tow vehicle must be equipped with an industry standard electronic brake
controller.
Specifications:
• Application: Disc brakes
• Maximum output pressure: 1,600 psi
• Vehicle requires an In-cab electric brake controller (sold separately) and a 7-Way trailer connector.
• Dimensions: 11-3/4" long x 3" wide x 7-3/8" tall
• 2-Year limited warranty
