KODIAK 10" Trailer Disc Brake Assy, Dacromet #1HRCM10DAC

Rating:
93 % of 100

Stock# 1561002   Everyday Low Price!

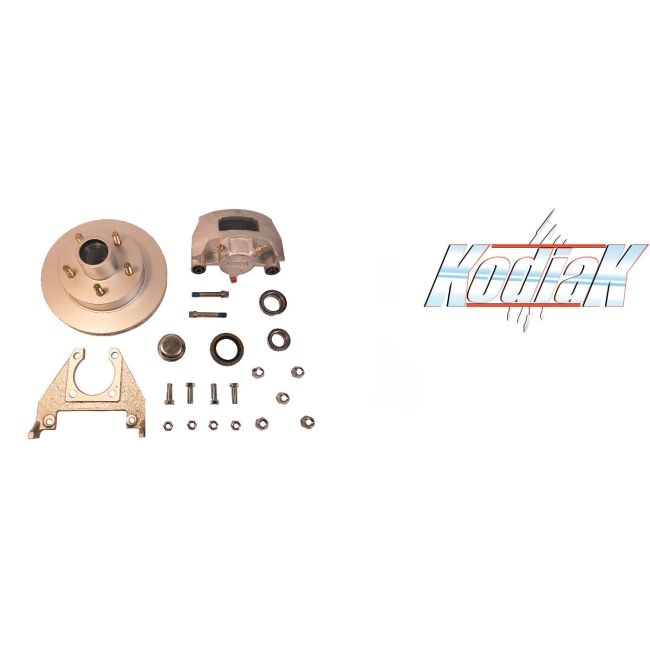

KODIAK 10" DACROMET PLATED Vented Integral Rotor/Hub assembly, Caliper & Mounting Bracket. 5 on 4.5" bolt pattern. Dacromet plating offers the best value of protection for salt water applications. One assembly required per wheel.

$219.95
SKU
1561002

KODIAK 10" DACROMET PLATED Vented Integral Rotor/Hub, Caliper & Mounting Bracket w/Hardware. One kit required per wheel.
3 YEAR KODIAK WARRANTY            See 'Related Items' below for options to complete your installation

Dacromet plating offers the best value of protection for salt water applications (i.e., during a standard salt spray test, rust will begin forming between 400-500 hours).
The INTEGRAL (One Piece) Hub & Rotor is cast as a single unit. Wheel studs are pressed into the rotor. Hub and rotor are balanced as one unit, which offers a smoother ride. Caliper mounts to 4 bolt brake flange and fits inside 13" and larger wheels. Caliper is loaded standard with Non-Asbestos Ceramic friction pads. Kit also includes inner bearing & race, outer bearing & race, grease seal, grease cap and lug nuts.

Always use High-Temperature Marine Bearing Grease with disc brakes due to the higher operating temperatures then drum brakes.

EZ-LOADER 3.5k & 3k AXLE NOTE:  Due to manufacturing variances this item must be retrofitted with Grease Seal # 5500103 to properly work with EZ-Loader Axles.

ROTOR DIAMETER: 10" VENTED
REPLACES DRUM DIAMETER: 10"
BEARING SIZE: 1-3/8" x 1-1/16"
GREASE SEAL ID: 1.72"
# OF STUDS: 5 @ 1/2" diameter
BOLT CIRCLE: 4-1/2" (13" & Larger Wheels)
AXLE RATING: 3,500 lbs.
CAN BE USED WITH ELECTRIC-OVER-HYDRAULIC ACTUATORS



Brand
Kodiak Trailer Componets
Manufacturer Part Number
1HRCM10DACK
More Information
Product Name KODIAK 10" Trailer Disc Brake Assy, Dacromet #1HRCM10DAC
