KODIAK 10" Disc Brake Set, Dacromet/KodaGuard #2RCM10DACKG

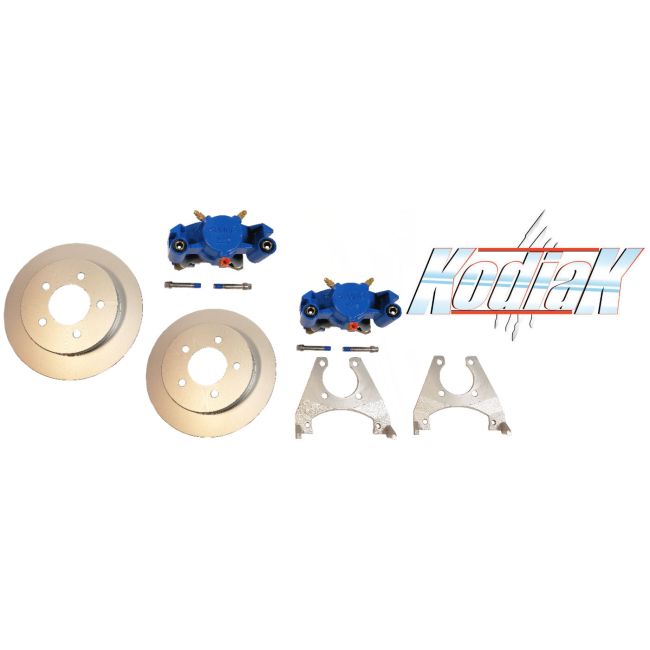

Kit Includes (2) KODIAK 10" DACROMET COATED Vented Rotors, (2) KodaGuard Calipers, (2) Dacromet Mounting Brackets
One kit required per axle. 3 YEAR KODIAK WARRANTY

Dacromet plating offers the best value of protection for salt water applications (i.e., during a standard salt spray test, rust will begin forming between 400-500 hours). 'Hat Style' Dacromet rotor fits over standard wheel hub (Not Included). The rotor is frequently wheel bolt piloted and is a loose fit on the hub. It is held in place by the wheel/wheel nuts. Caliper is Koda Guard Coated, mounts to 4 bolt brake flange and fits inside 14" and larger wheels. Caliper is loaded with Non-Asbestos Ceramic friction pads. Koda Guard Protective coating is a unique and patented technology designed to bridge the gap between Dacromet coating and stainless steel to offer an affordable option with increased corrosion protection

Always use High-Temperature Marine Bearing Grease with disc brakes due to the higher operating temperatures then drum brakes.

ROTOR DIAMETER: 10" VENTED
REPLACES DRUM DIAMETER: 10"
# OF STUDS: 5 @ 1/2" diameter
BOLT CIRCLE: 4-1/2" (14" & Larger Wheels)
AXLE RATING: 3,500 lbs.
CAN BE USED WITH ELECTRIC-OVER-HYDRAULIC ACTUATORS
Hubs (Not Included) require a minimum stud length of 1-1/4" for standard steel trailer rims, aluminum rims may require longer studs. Caliper bracket mounting bolts not included.
