KODIAK 10" Disc Brake Kit, Gal-Dex/S.S. (Slip On) #K71-2R-10-DSD

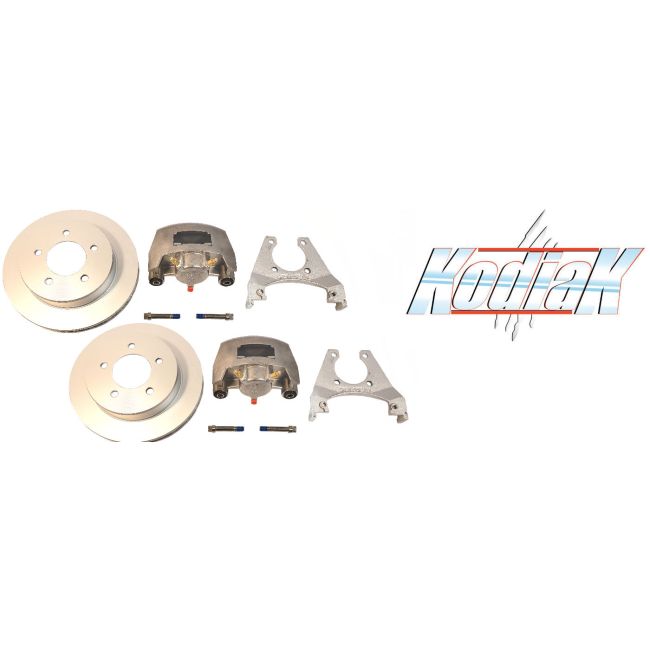

Kit Includes (2) KODIAK 10" GAL-DEX COATED Vented Rotors, (2) S.S. Calipers, (2) Gal-Dex Mounting Brackets and (4) Caliper Pins.
One kit required per axle. 6-YEAR KODIAK WARRANTY

See 'Related Items' below for options to complete your installation

GAL-DEX Coating offers the best value of protection for salt water applications (i.e., during a standard salt spray test, rust will begin forming between 400-500 hours).  'Hat Style'  Gal-Dex rotor fits over standard wheel hub (Not Included).  The rotor is frequently wheel bolt piloted and is a loose fit on the hub. It is held in place by the wheel/wheel nuts. Caliper is Stainless Steel, mounts to 4 bolt brake flange and fits inside 14" and larger wheels. Caliper is loaded with S.S. backed Non-Asbestos Ceramic friction pads.

Always use High-Temperature Marine Bearing Grease with disc brakes due to the higher operating temperatures then drum brakes.

ROTOR DIAMETER: 10" VENTED
REPLACES DRUM DIAMETER: 10"
# OF STUDS: 5 @ 1/2" diameter
BOLT CIRCLE: 4-1/2" (14" & Larger Wheels)
AXLE RATING: 3500 lbs.
CAN BE USED WITH ELECTRIC-OVER-HYDRAULIC ACTUATORS
Hubs (Not Included) require a minimum stud length of 1-1/4" for standard steel trailer rims, aluminum rims may require longer studs.

Cross Ref#: 2RCM10DACSS, 2/R-10-DSD
