KODIAK 11" (10K) GD Disc Brake Kit, Gal-Dex #K71-2R-11-10D-DDDD
Stock# 1561111

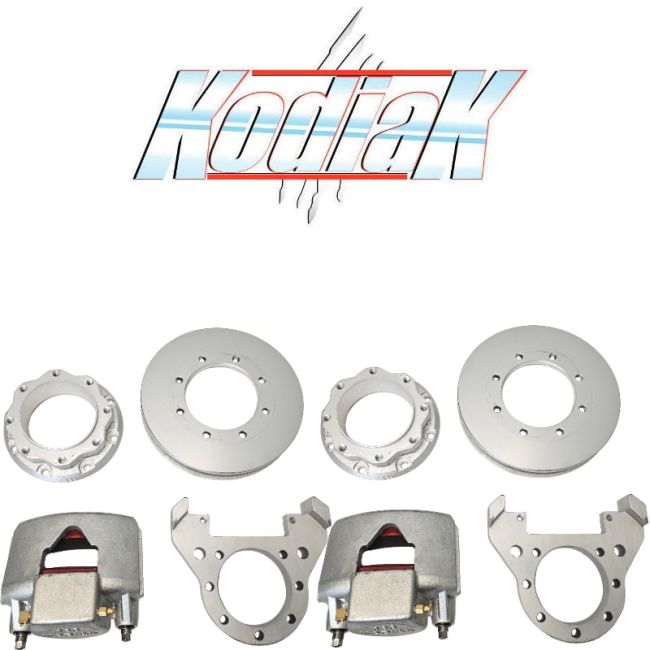

KODIAK 11" GAL-DEX COATED Vented Rotor with hub spacer, Gal-Dex Caliper & Mounting Bracket. Designed for use on Dexter or Lippert 10K general duty axles with oil bath hubs made prior to July 2009 with #99 spindles. 8-6.5" wheel bolt pattern, 1/2" wheel stud size. 1 Kit required per axle.
KODIAK 11" GAL-DEX COATED Vented Rotor with hub spacer, Gal-Dex Caliper & Mounting Bracket. Designed for use on Dexter or Lippert 10K general duty axles with oil bath hubs made prior to July 2009 with #99 spindles. 8-6.5" wheel bolt pattern, 1/2" wheel studs. Caliper bracket mounts to 7 bolt brake flange and fits inside 16” dual and 17.5" single wheels. Caliper is loaded standard with Non-Asbestos Ceramic friction pads. 1 Kit required per axle.
GAL-DEX Coating offers the best value of protection for salt water applications (i.e., during a standard salt spray test, rust will begin forming between 400-500 hours).
Always use High-Temperature Marine Bearing Grease with disc brakes due to the higher operating temperatures as compared to drum brakes.
ROTOR DIAMETER: 11" VENTED, Oil Bath, for 8.288" Hubs
REPLACES DRUM DIAMETER: 13"
# OF STUDS: 8 on 6-1/2"
AXLE RATING: 10,000 lbs.
BRAKE FLANGE: 7 Hole
CAN BE USED WITH ELECTRIC-OVER-HYDRAULIC ACTUATORS
Kit Contents:
- 070-RTR-11-10D-D GAL-DEX ROTOR - QTY2
- K71-DBC-338-D-L GAL-DEX CALIPER, LEFT - QTY1
- K71-DBC-338-D-R GAL-DEX CALIPER, RIGHT - QTY1
- 090-CMB-11-10D-D GAL-DEX BRACKET - QTY2
- K71-DBC-338-PAD E-COAT BACKED BRAKE PADS - QTY2
- 033-RTR-11-10D-D-SPC-D GAL-DEX SPACER - QTY2
- 007-RTR-11-13-BOLT CALIPER GUIDE BOLTS - QTY32
- 007-DBC-338-MHGB-SS CALIPER GUIDE BOLTS - QTY4
This kit does NOT come with hubs, bearings, or grease/oil seals. They will need to be purchased separately.
| Product Name | KODIAK 11" (10K) GD Disc Brake Kit, Gal-Dex #K71-2R-11-10D-DDDD |
|---|
