KODIAK 11" (8K) HD Disc Brake Kit 9/16" Stud, E-COAT #K71-2H-11-8D-9HD-REER

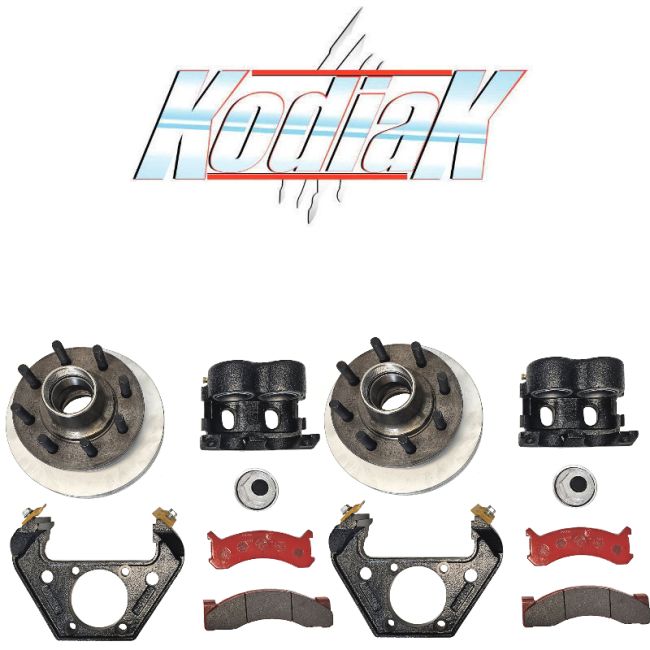

KODIAK 11" GAL-DEX COATED Vented Integral Rotor with raw steel hub assembly, E-COAT Caliper & Mounting Bracket. 1 Kit required per axle.
GAL-DEX Coating offers the best value of protection for salt water applications (i.e., during a standard salt spray test, rust will begin forming between 400-500 hours).
Integral 11" hub and rotor (one piece), 8-6.5 wheel bolt pattern, 9/16" wheel studs.
E-coating offers the best value of protection for over the road use and for fresh water marine (or limited salt water) applications (i.e., during a standard salt spray test, rust will begin forming between 250 and 350 hours).
Caliper bracket mounts to 4 bolt brake flange and fits inside 16” and larger wheels. Caliper is loaded standard with Non-Asbestos Ceramic friction pads. Kit include 2 threaded oil caps.

Always use High-Temperature Marine Bearing Grease with disc brakes due to the higher operating temperatures as compared to drum brakes.

ROTOR DIAMETER: 11" VENTED, Oil Bath
REPLACES DRUM DIAMETER: 13"
BEARING SIZE: 1-3/4" (# 25580 -1.75" x 3.26") x 1-1/4" (# 02475 -1.25" x 2.6875" x 0.875")
GREASE/OIL SEAL OD: 3.38"
# OF STUDS: 8 on 6-1/2", 9/16" wheel studs
BOLT CIRCLE: 6-1/2" (16" & Larger Wheels)
AXLE RATING: 8,000 lbs.
BRAKE FLANGE: 4 Hole
CAN BE USED WITH ELECTRIC-OVER-HYDRAULIC ACTUATORS

This kit does NOT come with bearings, or grease/oil seals. They will need to be purchased seperately.
