KODIAK 12" Disc Brake Kit, Gal-Dex (Slip-On) #K71-2R-12-DDD

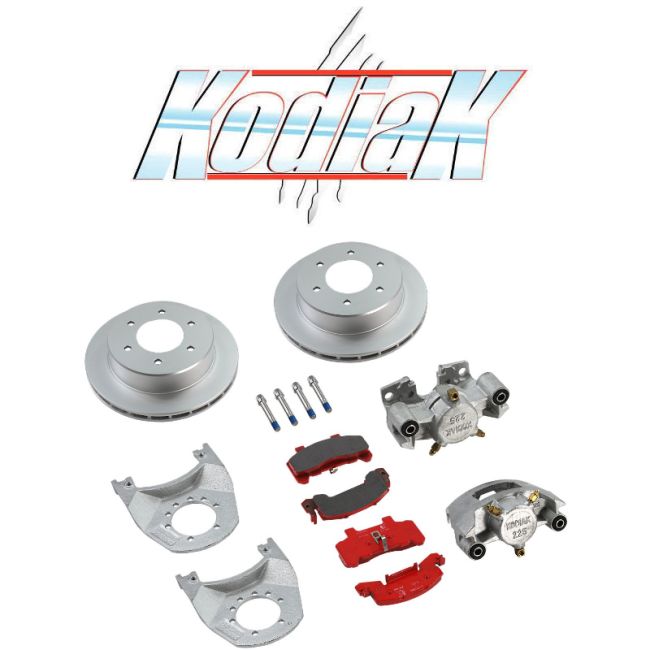

Kit Includes (2) KODIAK 12" GAL-DEX COATED Vented Rotors, (2) Gal-Dex Coated Calipers and (2) Gal-Dex Mounting Brackets.
One kit required per axle. 3-YEAR KODIAK WARRANTY
GAL-DEX Coating offers the best value of protection for salt water applications (i.e., during a standard salt spray test, rust will begin forming between 400-500 hours).  'Hat Style'  Gal-Dex rotor fits over standard wheel hub (Not Included).  The rotor is frequently wheel bolt piloted and is a loose fit on the hub. It is held in place by the wheel/wheel nuts. Caliper mounts to 5 bolt brake flange and fits inside 15" and larger wheels. Caliper is loaded with Non-Asbestos Ceramic friction pads.
Always use High-Temperature Marine Bearing Grease with disc brakes due to the higher operating temperatures then drum brakes.

ROTOR DIAMETER: 12" VENTED
REPLACES DRUM DIAMETER: 12"
# OF STUDS: 6 @ 1/2" diameter
BOLT CIRCLE: 5-1/2" (15" & Larger Wheels)
AXLE RATING: 5,200 - 6,000 lbs.
CAN BE USED WITH ELECTRIC-OVER-HYDRAULIC ACTUATORS
Hubs (Not Included) require a minimum stud length of 1-1/4" for standard steel trailer rims, aluminum rims may require longer studs.
