KODIAK 13" (8K) Trailer Disc Brake Kit 5/8" Stud, Gal-Dex #K71-2H-133-8D-5-DDD

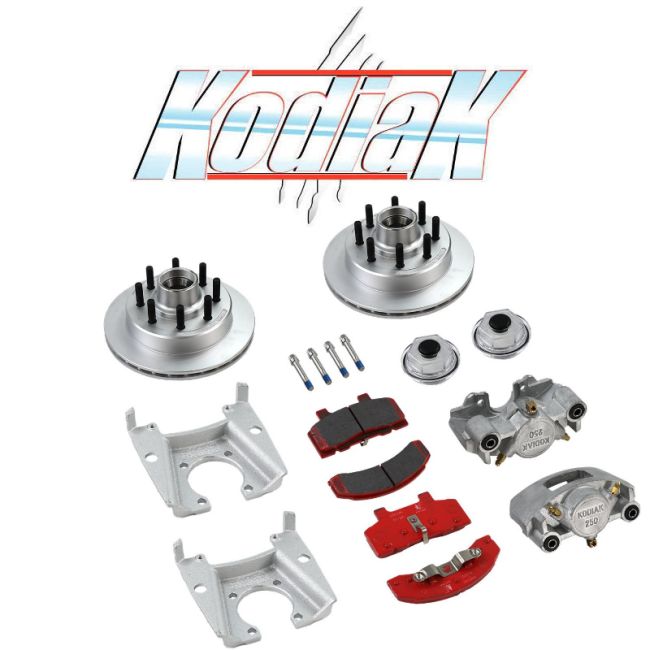

KODIAK 13" GAL-DEX COATED Vented Integral Rotor/Hub assembly, Caliper & Mounting Bracket. 1 Kit required per axle.
GAL-DEX Coating offers the great value of protection for salt water applications
Integral 13" hub and rotor (one piece), 8-6.5 wheel bolt pattern, 5/8" wheel studs. Caliper bracket mounts to 4 bolt brake flange and fits inside 16” and larger wheels. Caliper is loaded standard with Non-Asbestos Ceramic friction pads. Kit include 2 threaded oil caps.

Always use High-Temperature Marine Bearing Grease with disc brakes due to the higher operating temperatures as compared to drum brakes.

ROTOR DIAMETER: 13" VENTED, Oil Bath
REPLACES DRUM DIAMETER: 13"
BEARING SIZE: 1-3/4" (# 25580 -1.75" x 3.26") x 1-1/4" (# 02475 -1.25" x 2.6875" x 0.875")
GREASE/OIL SEAL OD: 3.38"
# OF STUDS: 8 on 6-1/2", 5/8" wheel studs
BOLT CIRCLE: 6-1/2" (16" & Larger Wheels)
AXLE RATING: 8,000 lbs.
BRAKE FLANGE: 4 Hole
CAN BE USED WITH ELECTRIC-OVER-HYDRAULIC ACTUATORS

This kit does NOT come with bearings, or grease/oil seals. They will need to be purchased seperately.
