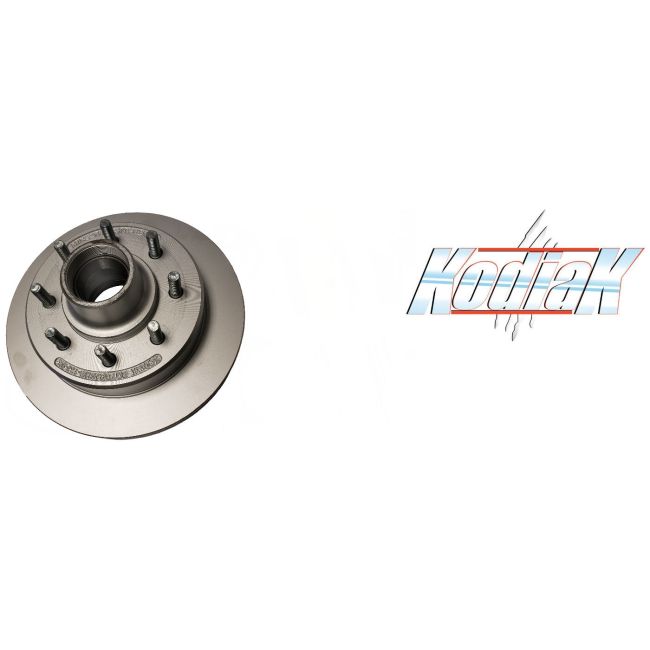

KODIAK 7K 13" Vented Integral Oil-Bath Rtr/Hub, Gal-Dex. #008-R/H-133-8-9-D-S

KODIAK 13-3/16" GAL-DEX COATED Vented Integral Oil-Bath Rotor/Hub trailer disc brake assembly with 9/16" studs.
GAL-DEX Coating offers the best value of protection for salt water applications (i.e., during a standard salt spray test, rust will begin forming between 400 and 600 hours). The INTEGRAL (One Piece) Hub & Rotor is cast as a single unit. Wheel studs are pressed into the rotor. Hub and rotor are balanced as one unit, which offers a smoother ride. Includes inner and outer races which are already installed. (OIl Cap, Bearings, seal, and lug nuts sold separately)

Use SAE 90 weight Gear Oil for proper lubrication.

ROTOR DIAMETER: 13-3/16" VENTED
RACE NUMBERS: 25520-02420
BEARING SIZE: 1-3/4"(25580) x 1-1/4"(02475) (Not included)
GREASE SEAL OD: 3.38" (Not included)
# OF STUDS: 8 @ 9/16" diameter
BOLT CIRCLE: 6-1/2" (15" & Larger Wheels)
AXLE RATING: 7,000 lbs
OIL CAP: Threaded 2-7/8"
CAN BE USED WITH ELECTRIC-OVER-HYDRAULIC ACTUATORS

Cross Ref#: R/HUB-133-8-9-DAC, R/H-133-8-9-D-S
