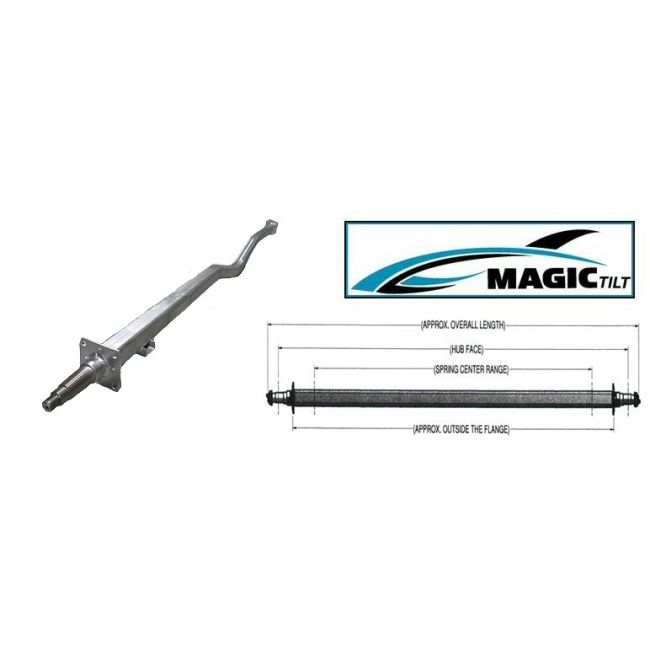

MAGIC TILT 2" x 3" (5,200 lbs.) Drop Center Axle #PH4303
Stock# 5428180
Track Length = 86" Overall = 92" Spring Center = 67". Hot dipped galvanized square stock MAGIC TILT factory axle. Axle requires (2) each of the tapered hubs/rotors and all retaining hardware. 4-hole brake mounting flanges are attached.
Hot dipped galvanized heavy duty 2" x 3" stock MAGIC TILT factory axle part #PH4303. Axle requires (2) each of the tapered hubs/rotors and retaining hardware. 4-hole brake mounting flanges are attached.
*This will work with any 1-3/4" x 1-1/4" idler hub but the only brakes that will work on this axle are the UFP DB-35 12" Disc Brakes
Axle Type: 2" x 3" - "V" Center
Load Rating: 5,200 lbs.
Track Length: 86"
Spring Center: 67"
Hub Type: 6 lug tapered
Spindle Size: 1-3/4" x 1-1/4" w/4-Hole Brake Flange
Seal Size: 2.125" x 3.38"
| Product Name | MAGIC TILT 2" x 3" (5,200 lbs.) Drop Center Axle #PH4303 |
|---|
