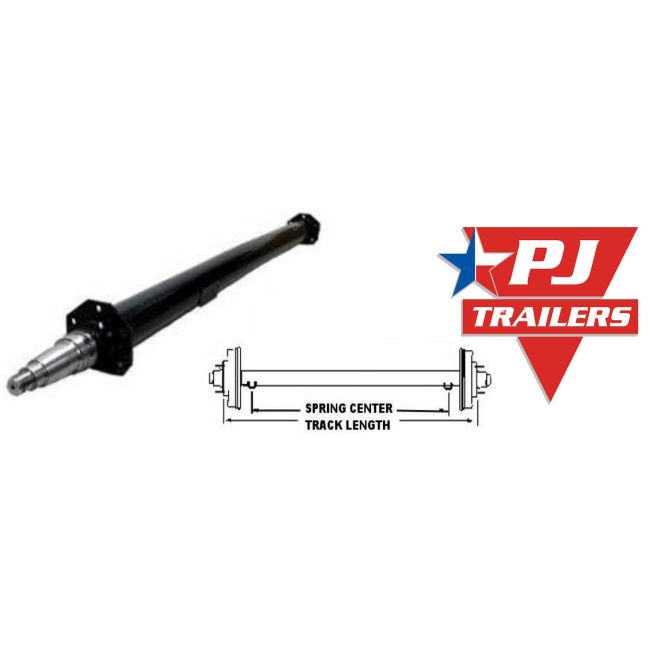

PJ TRAILER 95" Round Tube Straight Trailer Axle (7,000 lb.) #7309805

Rating:
100 % of 100

Stock# T5432113
Track Length = 95" Overall = 100.82" Spring Center = 80" Underslung  Includes pre-attached 5-hole brake mounting flanges.  PJ Trailer 3" diameter round tube trailer axle by Dexter includes spindle nuts, nut retainers, D-washers, and spring seats.
Ships 'Truck Freight' and is subject to delivery service limitations. (Click Truck Truck Freight Shipping Information for details)

$289.00
SKU
T5432113

CLICK FOR AXLE MEASURING INSTRUCTIONS
PJ Trailer 3" Diameter x 5/16 wall round tube trailer axle made by Dexter to PJ specifications, black painted finish, cambered design axle includes spindle nuts, nut retainers, D-washers, and spring seats. CAMBER: Axles are cambered or 'road set' so there is a bow until weight is put on the axle. All cambered axles should be mounted with the center bow up. This axle includes pre-attached brake mounting flanges (5-hole).

Axle Type: Round/Straight
Load Rating: 7,000 lbs.
Track Length: 95" Hub Face to Hub Face
Spring Center: 80" Underslung
Overall Length: 100.82"
Outside to Outside Brake Flange: 86-1/2"
Spindle Size: 1-3/4" x 1-1/4" (grease seal lip I.D. = 2.25")

Ships 'Truck Freight' and is subject to delivery service limitations. (Click Truck Truck Freight Shipping Information for details)

Brand
PJ Trailer
Manufacturer Part Number
7309805
