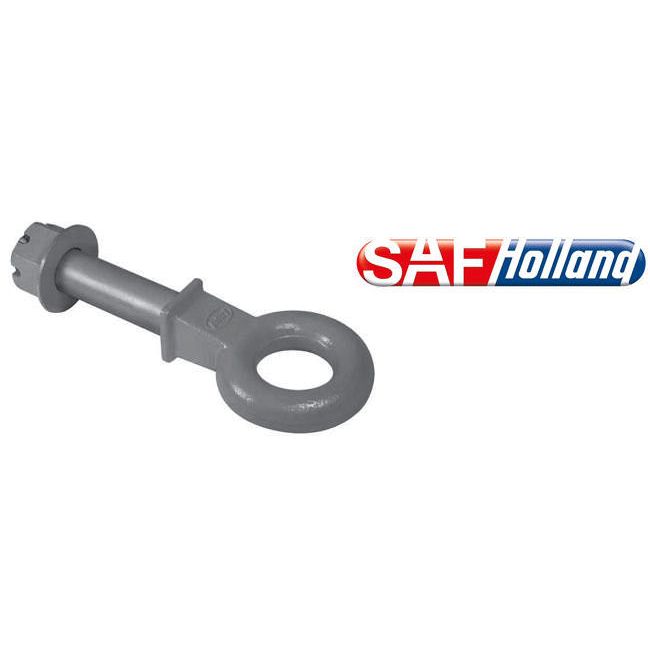

22.5-Ton Bolt-On Shank Mounted Lunette Ring Drawbar #DB-1249-49
Stock# 5351043
3" I.D. Ring, 45,000 lbs. (GTW) rating, (9,000 lbs. maximum vertical load). Bolt-on design forged alloy steel drawbar.
$302.00
SKU
5351043
3" I.D. Ring, 45,000 lbs. (GTW) rating, (9,000 lbs. maximum vertical load). Bolt-on design forged, one-piece steel alloy drawbar.
NOTE: The mounting surface must have an adequate chamfer, as shown above, so that the drawbar mounts flush with the mounting surface.
Features Include:
- Forged, one-piece steel alloy drawbar
- Heat treated for strength
- I.D. of eye is induction hardened for wear resistance
- Tested in accordance with SAE J847
Brand
SAF Holland USA
Manufacturer Part Number
DB-1249-49
| Product Name | 22.5-Ton Bolt-On Shank Mounted Lunette Ring Drawbar #DB-1249-49 |
|---|
