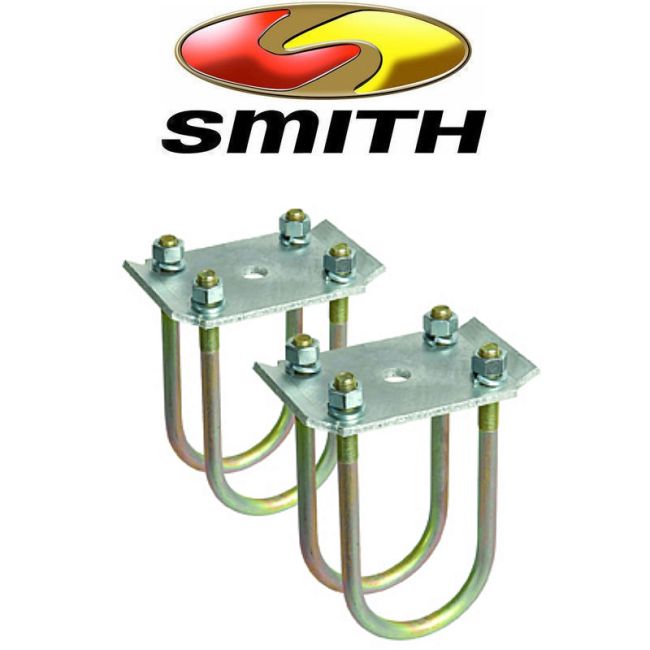

CE SMITH Tie Plate Kit for 2-3/8" Round Trailer Axle #23002

Stock# 5212156
Trailer axle and leaf spring galvanized tie-plate with zinc plated mounting hardware kit. U-Bolt Size 1/2" x 2-15/16" x 5-1/8"
Kit Includes: (4) U-bolts, (8) nuts & lock washers, and (2) axle tie plates.

$35.95
SKU
5212156

One kit supplies all necessary hardware to mount two leaf springs on one trailer axle.
Kit Includes: (4) U-bolts, (8) nuts & lock washers and (2) axle tie plates.

Axle Size: 2-3/8" Round Axle
U-Bolt Size: 1/2" x 2-15/16" x 5-1/8"
Spring Width: 1-3/4"
U-Bolt Finish: Zinc Plated
Hardware Finish: Zinc Plated
Tie Plate Finish: Galvanized

Formed Axle Tie Plate Dimensions

  • Dimension A = 5-7/8"
  • Dimension B = 2-15/16"
  • Dimension C = 2-5/16"
  • Dimension D = 3-3/4"
  • 9/16" hole diameter

Brand
C E Smith
Manufacturer Part Number
23003
