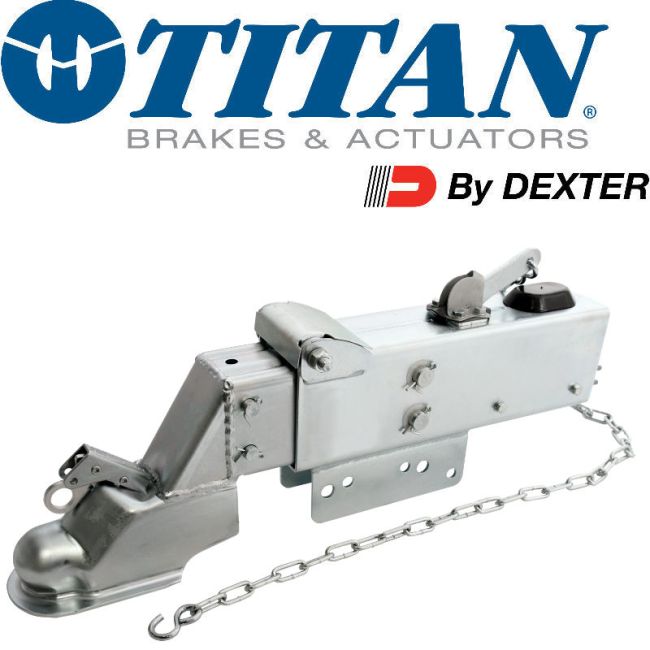

TITAN / DICO Model 10 Drum Brake Actuator #068-104-00
Stock# 5237001
2-5/16" ball drop coupler design hydraulic trailer brake actuator with zinc plated finish and a rated capacity of 12,500 lbs. Bolt-On design for 3" wide trailer tongue with multiple mounting holes on a 3" and 5" center front to back. Designed for DRUM BRAKE applications only.
Hydraulic Surge Drum Brake Actuator with Zinc plated finish for maximum corrosion protection.
12,500 lbs. MAXIMUM GROSS LOAD with 2-5/16" coupler. Multiple mounting holes are on a 3" and 5" center front to back.
The MODEL 10 actuator is intended for use on heavier recreational and light industrial trailers. The actual in-service rating is limited to that of the ball and hitch being used or the trailer manufacturer's G.V.W.R. shown on the certification label, whichever is lower.
Rated Capacity: 12,500 lbs
Ball Size: 2-5/16"
Brake Lock-Out: No
Frame Width: 3"
Product Name | TITAN / DICO Model 10 Drum Brake Actuator #068-104-00 |
---|
