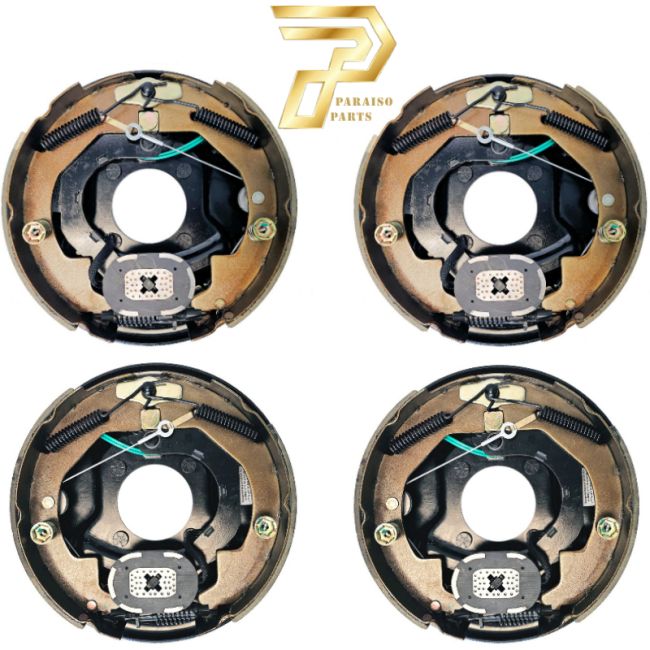

PARAISO 10" x 2-1/4" Self-Adjust Electric Brake LH/RH 3.5k, Tandem Axle Set #TAB56
Stock# 7160083
Tandem Axle Set, PARAISO 10" x 2-1/4" Forward Self-Adjusting complete electric brake assemblies. This brake is rated to a maximum capacity of 3,500 lbs. per pair. Self-Adjusting brakes automatically adjust to proper clearances during travel allowing you to stop with confidence.
Tandem Axle Set, PARAISO Forward Self-Adjusting 10" x 2-1/4" complete electric brake assemblies. This design utilizes an innovative forward self-adjusting feature. During forward travel, the brakes automatically adjust to deliver optimum performance and braking power. Mounts to 4-hole axle brake flange.
These brakes are rated to a maximum capacity of 3,500 lbs. per pair. (Green Wire Magnet)
Self-Adjustment Note: brakes will self adjust after a few stops. To burnish the new brakes in, apply the brakes 20 to 30 times from an initial speed of 40 mph slowing the vehicle to 20 mph. Allow the brake to cool before starting the next brake application. Burnishing takes away the high lining spots, high magnet spots and machining marks on the drum surface.
MOUNT SIDE: Left (driver side of vehicle)
DRUM DIAMETER: 10"
MOUNT SIDE: 2 Left (7160005) and 2 Right (7160006)
# OF BOLTS: 4 Mounting holes on 2-7/8" center, hardware NOT included
| Product Name | PARAISO 10" x 2-1/4" Self-Adjust Electric Brake LH/RH 3.5k, Tandem Axle Set #TAB56 |
|---|
