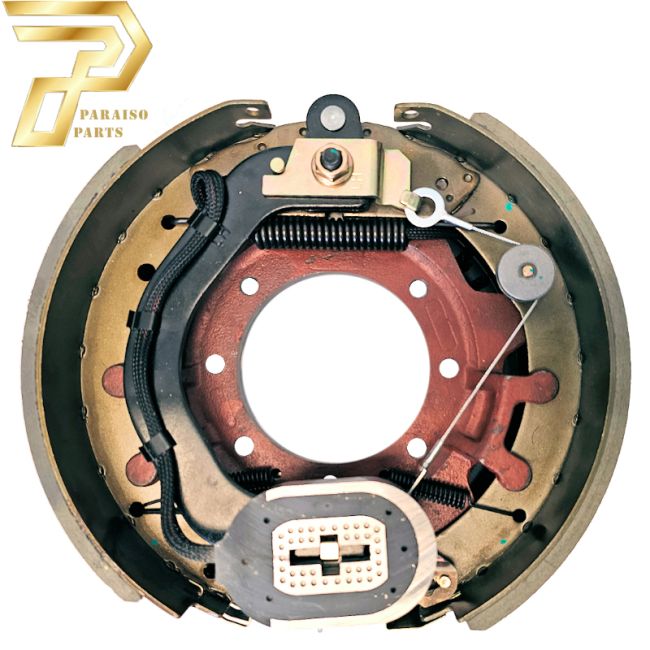

PARAISO 12-1/4" x 3-3/8" Electric Brake Assy - Left Hand / 10K #AB37
Stock# 7160019
PARAISO 12-1/4" x 3-3/8" FSA Left Hand complete electric brake assembly. This brake is rated to a maximum capacity of 10,000 lbs. per pair.
PARAISO 12-1/4" x 3-3/8" Left Hand complete electric brake assembly. Mounts to 7-hole axle brake flange.
This brake is rated to a maximum capacity of 10,000 lbs. per pair. (Red Wire Magnet)
SELF ADJUSTING FEATURE: Forward Self Adjusting (FSA) feature adjusts the brakes on both forward and reverse stops. Brake adjustment occurs when lining wear results in enough gap between the shoes and the brake drum surface. This added clearance will allow the adjuster mechanism to rotate the screw assembly at the bottom of the brake. That action expands the distance between the shoes and thus closes the gap to the drum surface.
MOUNT SIDE: Left (driver side of vehicle)
| Product Name | PARAISO 12-1/4" x 3-3/8" Electric Brake Assy - Left Hand / 10K #AB37 |
|---|
