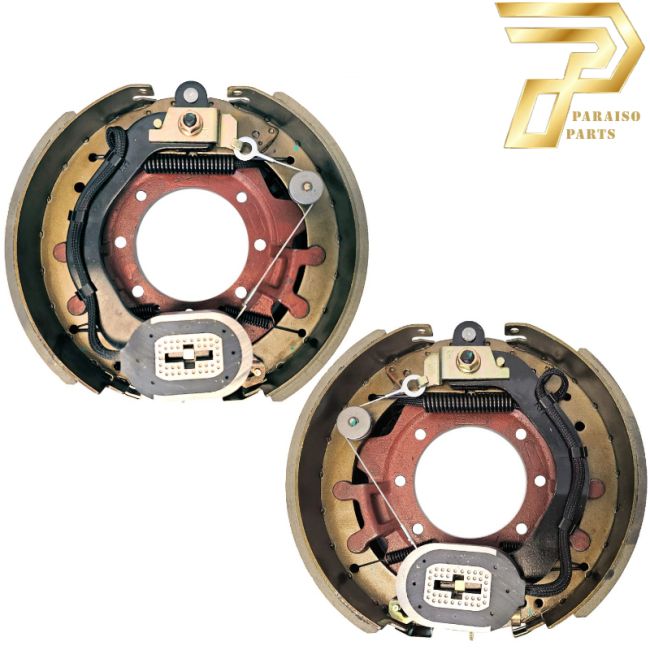

PARAISO 12-1/4" x 3-3/8" Electric Brake LH/RH 10K, Single Axle Set #SAB3738

Single Axle Set, PARAISO 12-1/4" x 3-3/8" complete electric brake assemblies. Mounts to 7-hole axle brake flange. This brake is rated to a maximum capacity of 10,000 lbs. per pair. (Red Wire Magnet)

SELF ADJUSTING FEATURE: Forward Self Adjusting (FSA) feature adjusts the brakes on both forward and reverse stops. Brake adjustment occurs when lining wear results in enough gap between the shoes and the brake drum surface. This added clearance will allow the adjuster mechanism to rotate the screw assembly at the bottom of the brake. That action expands the distance between the shoes and thus closes the gap to the drum surface.

DRUM DIAMETER: 12-1/4"
MOUNT SIDE: 1 Left (7160019) and 1 Right (7160020)
# OF BOLTS: 7 Mounting holes, hardware NOT included
