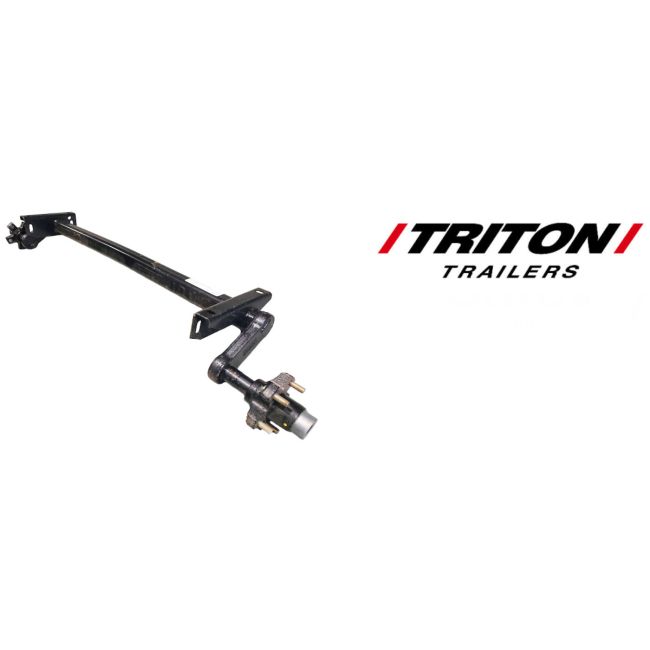

TRITON 71-5/8" Elite Snowmobile Trailer Torsion Axle (2,200 lb.) #10521
Stock# 7102169
Overall Length = 77-5/8" Hub Face = 71-5/8" Bracket Center = 52-1/2"
TRITON axle weldment includes mounting hardware, hubs, bearing lube caps, bearings, seal and dust cap. Lug nuts sold separately.
TRITON Elite original equipment factory replacement trailer axle. This axle comes with mounting hardware, wheel hubs, bearing lube caps, bearings, seals and spindle nuts. Lug nuts sold separately. Spindles have grease fitting on the tip to lubricate the hub without removal. This axle is NOT equipped with brake flanges.
Axle Type: Square - Torsion - Painted
Load Rating: 2,200 lbs.
Track Length: 71-5/8" Hub Face to Hub Face
Overall Length: 77-5/8"
Bracket Center: 52-1/2"
Hub Type: 5 bolt x 4.5" Bolt Pattern (Included and mounted on axle)
Spindle Size: 1-1/16" x 1-1/16"
| Product Name | TRITON 71-5/8" Elite Snowmobile Trailer Torsion Axle (2,200 lb.) #10521 |
|---|
