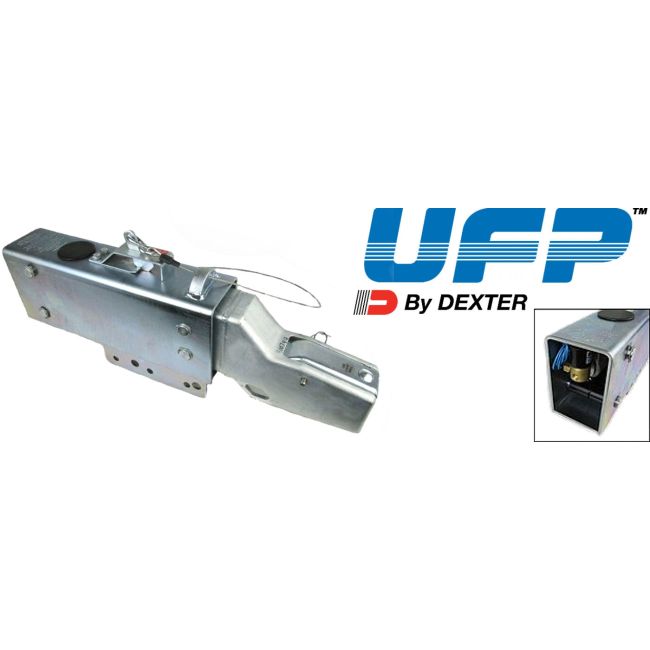

UFP Model A-160 Tandem & Tri-Axle Disc Brake Actuator #40075U

Stock# 5415099
UFP A-160 series hydraulic disc brake actuator was developed for tandem and tri-axle disc brakes and includes an electrical reverse lock-out solenoid that allows you to back-up without the brakes engaging. The solenoid is covered by the housing which provides protection against damage and the elements. The A-160 is also features a zinc plated finish for better corrosion resistance. Includes a 2 year limited warranty. (For Tandem & Tri-Axle Disc Brake Systems)

$749.00

SKU

5415099

Details

UFP A-160 series hydraulic disc brake actuator was developed for tandem and tri-axle disc brakes and includes an electrical reverse lock-out solenoid that allows you to back-up without the brakes engaging. The solenoid is covered by the housing which provides protection against damage and the elements. The A-160 is also features a zinc plated finish for better corrosion resistance. Includes a 2 year limited warranty.
(For Tandem & Tri-Axle Disc Brake Systems)

Rated Capacity: 16,000 lbs
Max Tongue Capacity: 1,000 lbs.
Ball Size: 2-5/16"
Brake Lock-Out: Yes, electrical reverse lock-out solenoid installed.
Breakaway Cable: Included
Frame Width: 3"
