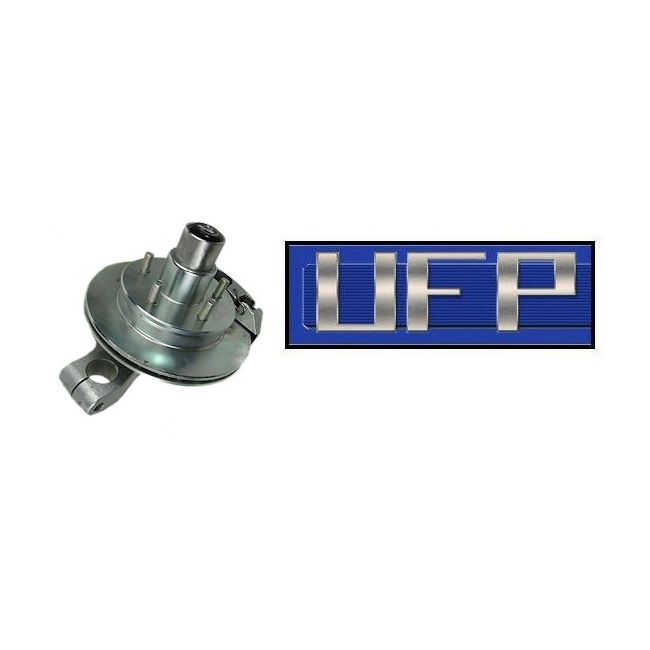

UFP 3.7K Vault Torsion Arm with DB-35 Disc Brake Assembly, (RH) #43039R

Rating:

100 % of 100

Stock# 5415120
UFP Torsion Axle Trailing Arm Assembly (Right Hand Side) has a 5 Lug DB-35 10" disc brake assembly with rotor and caliper installed.This assembly uses the The VAULT “Hybrid Lubrication system” which gives you the ultimate wheel bearing lubrication and protection. No inspection, no maintenance and no service required.

$439.95

SKU

5415120

Details

UFP Torsion Axle Trailing Arm Assembly (Right Hand Side) has a 5 Lug DB-35 10" disc brake assembly with rotor and caliper installed.This assembly uses the The VAULT “Hybrid Lubrication system” which gives you the ultimate wheel bearing lubrication and protection. No inspection, no maintenance and no service required. The 5/8" torsion arm mounting bolt, nut, and washer are not included.

Rated Capacity: 3,700 Lbs.
Spindle Size: 1-3/8" x 1-1/16" tapered
Diameter: 9-3/4"
Bolt circle: 5 on 4-1/2"
Inner Bearing: 1-3/8" (L68149)
Inner Race: L68110 (Included)
Outer Bearing: 1-1/16" (L44649)
Outer Race: L44610 (Included)
Seal: 1.68" ID x 2.56" OD
