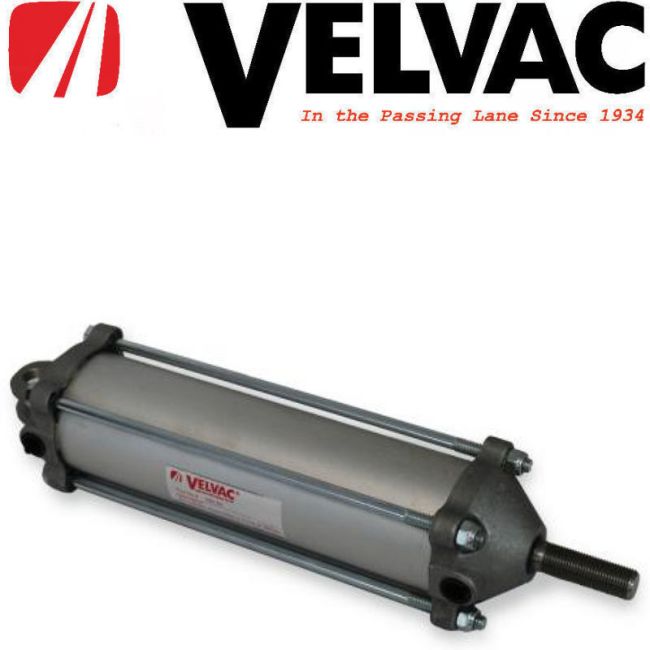

VELVAC 2.5" Tailgate Air Cylinder #100124

Rating:
100 % of 100

Stock# 1583179
VELVAC tailgate air cylinder is designed to allow remote cab opening and closing of the tailgate locking mechanism on a dump body.  Diameter: 2.5" Stroke: 8"

$135.95
SKU
1583179

VELVAC tailgate air cylinder is designed to allow remote cab opening and closing of the tailgate locking mechanism on a dump body.

Features:

  • 300 service stainless steel cylinder shafts provide excellent corrosion resistance and extended cycle life -cylinders tested to over 500000 cycles.
  • Lightweight, corrosion resistant aluminum cylinder tube with die cast aluminum end caps.
  • Rear clevis cast as integral part of the rear cover for improved durability and mounting integrity.
  • Double acting, Emralon-coated piston cup assures smooth long lasting operation even in cold weather conditions (to - 40°)
  • Front end cap assembly includes pressure seal, dirt seal and oil impregnated bronze bushing
  • All cylinders are factory pressure and leak tested prior to shipping

Air Cylinder Specifications

  • Diameter: 2.50"
  • Stroke: 8"
  • Retracted Length: 13.37"
  • Extended Length: 21.37"
  • Thrust @ 100 psi: 483 lbs.
  • Draw @ 100 psi: 452 lbs.
  • Cylinder Type: Push-Pull

Brand
Velvac
Manufacturer Part Number
100124
