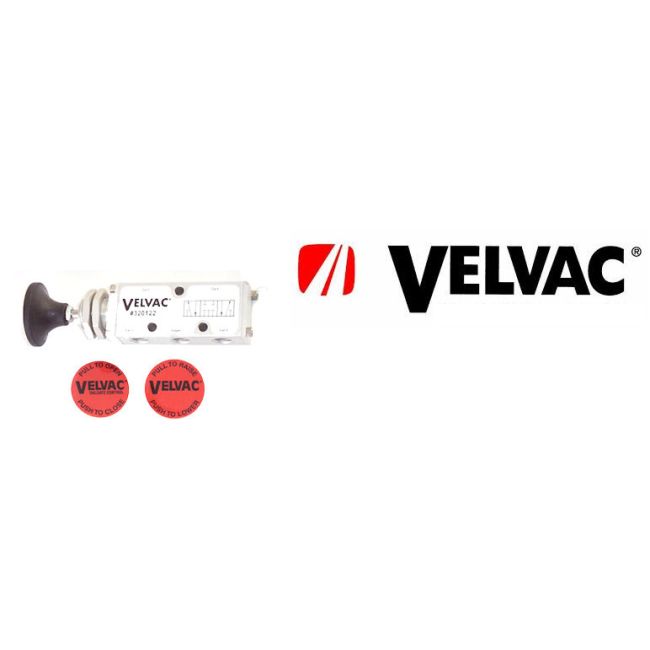

Velvac® Four Position Holding Type Valve #320176
Stock# 1583240
VELVAC four position valve operates systems where full air or vacuum pressure must be isolated and has a newly designed orifice area that increases airflow 30 - 40% in comparison to previous valves.
SUPPLIES LIMITED
VELVAC four position valve operates systems where full air or vacuum pressure must be isolated.
Specifications:
• Anodized aluminum clear-coated bodies.
• Nitrile for long cycle life
• High impact knobs with faceplates balanced spool design
• Operating temperature range from -40°F to +180°F
• Stainless steel hardware
• Orifice area increases airflow 30-40% in comparison to previous valve style
• Aluminum shaft with stainless steel extension and delrin detent ring provides easy identification of valve position and long cycle life- tested to over Five Million cycles
• Threaded aluminum mounting boss for 1 inch dia. through hole mounting (Nuts are included)
• (3) 9/32 inch dia body mounting holes
• (5) 1/2 inch - 18 FPT ports
• Operating pressure range from vacuum to 150 psi.
• Include Two faceplates: Pull to Open/Push to Close and Pull to Raise/Push to Lower
SUPPLIES LIMITED
| Product Name | Velvac® Four Position Holding Type Valve #320176 |
|---|
