VENTURE 68" Round Tube Straight Trailer Axle (1,500 lb.) #20000
Stock# 5421043

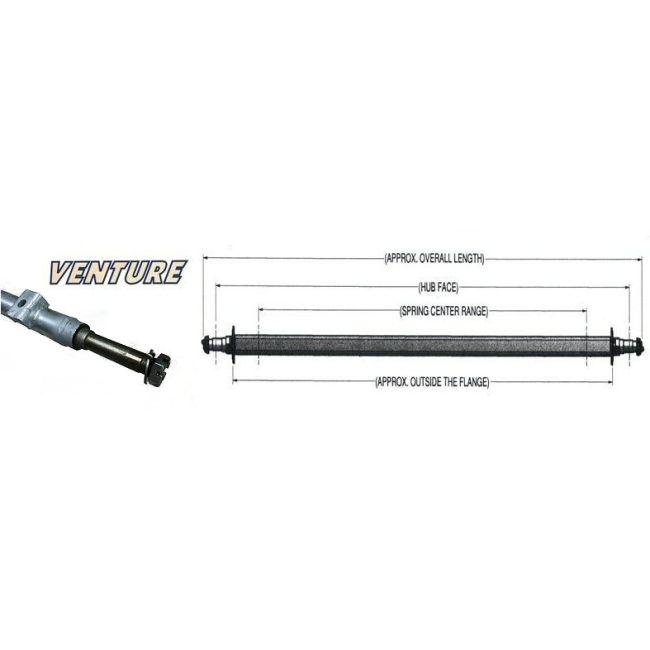

Track Length = 68" Overall = 73" Spring Center = 54" Spindle Size = 1-1/16" Seal = 1.25" ID x 1.987" O.D.
VENTURE original equipment galvanized boat trailer axle.
CLICK FOR AXLE MEASURING INSTRUCTIONS
1-3/4" Diameter round tube galvanized trailer axle with a cambered design. VENTURE axle includes spindle nuts, cotter pins, and pre-welded spring seats.
CAMBER: Axles are cambered or 'road set' so there is a bow until weight is put on the axle. All cambered axles should be mounted with the center bow up. This trailer axle does not include brake flanges.
Axle Type: Round/Straight
Load Rating: 1,500 lbs
Track Length: 68" Hub Face to Hub Face
Spring Center: 54"
Overall Length: 73"
Spindle Size: 1-1/16" Straight
Grease Seal: 1.25" ID x 1.987" OD (not included)
| Product Name | VENTURE 68" Round Tube Straight Trailer Axle (1,500 lb.) #20000 |
|---|
