Trailer Hitch Ball Mounts / Drawbars

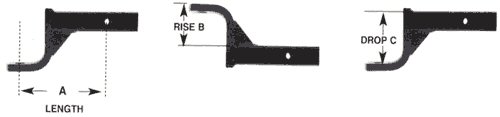

Hitch Drawbars & Ball Mounts are available in a wide variety of sizes, styles, finishes and capacities. A selection of "Adjustable" and "Multi-Ball" ball mounts are also listed in this section. Please review the diagrams below to determine "Ball Mount Measurement" locations. These specifications are referred to throughout this section.

Quantity Description Price
Draw-Tite Interlock Towing Starter Kit, #40565
Draw-Tite Interlock Towing Starter Kit, #40565

Stock# 5223274
Class III Interlock Towing Starter Kit includes: 2" Sq. black powder coated ball mount w/ receiver lock, 2" hitch ball and a storage case.
6,000 lbs. (GTW) rating, Length = 8-1/2", Rise = 3/4", Drop = 2"
SUPPLIES LIMITED
$51.95
1-1/4" sq. Hitch Drawbar Kit, 5" Rise #36065
1-1/4" sq. Hitch Drawbar Kit, 5" Rise #36065

Stock# 5223288
Black powder coat finish drawbar with 1/2" dia. pin & clip.
Length = 10", Rise = 5", fits 3/4" ball shank.
$25.95
Sportframe 1-1/4" sq. Hitch Drawbar #3593
Sportframe 1-1/4" sq. Hitch Drawbar #3593

Stock# 5223179
Zinc finish, drop-cut drawbar with 1/2" dia. pin & clip.
Length = 6-5/8", Rise = 2-1/2", Drop = 2-3/4", fits 3/4" ball shank.
$20.65
Utility 2" sq. Trailer Hitch Ball Mount, 2" Drop #1803005
Utility 2" sq. Trailer Hitch Ball Mount, 2" Drop #1803005

Stock# 1326106
Black finish, straight-cut ball mount rated at 6000 lbs. (GTW).
Length = 8", Rise = 3/4", Drop = 2", fits 1" ball shank.
$13.95
Chrome Utility 2" sq. Hitch Ball Mount, 2" Drop #1803006
Chrome Utility 2" sq. Hitch Ball Mount, 2" Drop #1803006

Stock# 1326107
Chrome plated finish, straight-cut ball mount rated at 6000 lbs. (GTW).
Length = 8", Rise = 3/4", Drop = 2", fits 1" ball shank.
$18.50
Utility 2" sq. Trailer Hitch Ball Mount, 2" Drop #1803007
Utility 2" sq. Trailer Hitch Ball Mount, 2" Drop #1803007

Stock# 1326108
Black finish, straight-cut ball mount rated at 6000 lbs. (GTW).
Length = 10", Rise = 3/4", Drop = 2", fits 1" ball shank.
$16.99
Utility 2" sq. Trailer Hitch Ball Mount, 4" Drop #1803010
Utility 2" sq. Trailer Hitch Ball Mount, 4" Drop #1803010

Stock# 1326109
Black finish, straight-cut ball mount rated at 6000 lbs. (GTW).
Length = 8", Rise = 2-3/4", Drop = 4", fits 1" ball shank.
$16.50
Chrome Utility 2" sq. Hitch Ball Mount, 4" Drop #1803011
Chrome Utility 2" sq. Hitch Ball Mount, 4" Drop #1803011

Stock# 1326110
Chrome plated finish, straight-cut ball mount rated at 6000 lbs. (GTW).
Length = 8", Rise = 2-3/4", Drop = 4", fits 1" ball shank.
$22.99
Utility 2" sq. Trailer Hitch Ball Mount, 4" Drop #1803013
Utility 2" sq. Trailer Hitch Ball Mount, 4" Drop #1803013

Stock# 1326111
Black finish, straight-cut ball mount rated at 6000 lbs. (GTW).
Length = 10", Rise = 2-3/4", Drop = 4", fits 1" ball shank.
$17.50
Utility 2" sq. Trailer Hitch Ball Mount, 6" Drop #1803015
Utility 2" sq. Trailer Hitch Ball Mount, 6" Drop #1803015

Stock# 1326112
Black finish, straight-cut ball mount rated at 6000 lbs. (GTW).
Length = 10", Rise = 4-3/4", Drop = 6", fits 1" ball shank.
$23.95
Utility 2" sq. Trailer Hitch Ball Mount, 8" Drop #1803017
Utility 2" sq. Trailer Hitch Ball Mount, 8" Drop #1803017

Stock# 1326062
Black finish, straight-cut ball mount rated at 6000 lbs. (GTW).
Length = 6", Rise = 6-3/4", Drop = 8", fits 1" ball shank.
$24.50
Utility 2" sq. Trailer Hitch Ball Mount, 10-1/4" Drop #1803019
Utility 2" sq. Trailer Hitch Ball Mount, 10-1/4" Drop #1803019

Stock# 1326063
Black finish, straight-cut ball mount rated at 5000 lbs. (GTW).
Length = 10.28", Rise = 9", Drop = 10-1/4", fits 1" ball shank.
$44.50
Heavy-Duty Utility 2" sq. Hitch Ball Mount, 2" Drop #1803050
Heavy-Duty Utility 2" sq. Hitch Ball Mount, 2" Drop #1803050

Stock# 1326114
Solid shank, black finish, straight-cut ball mount rated at 10,000 lbs. (GTW).
Length = 8", Rise = 3/4", Drop = 2", fits 1" ball shank.
$28.95
Heavy-Duty Utility 2" sq. Hitch Ball Mount, 2" Drop #1803051
Heavy-Duty Utility 2" sq. Hitch Ball Mount, 2" Drop #1803051

Stock# 1326115
Solid shank, black finish, straight-cut ball mount rated at 10,000 lbs. (GTW).
Length = 8", Rise = 3/4", Drop = 2", fits 1-1/4" ball shank.
$28.95
Heavy-Duty Utility 2" sq. Hitch Ball Mount, 4" Drop #1803055
Heavy-Duty Utility 2" sq. Hitch Ball Mount, 4" Drop #1803055

Stock# 1326116
Solid shank, black finish, straight-cut ball mount rated at 10,000 lbs. (GTW).
Length = 8", Rise = 2-3/4", Drop = 4", fits 1" ball shank.
$33.95
Heavy-Duty Utility 2" sq. Hitch Ball Mount, 4" Drop #1803056
Heavy-Duty Utility 2" sq. Hitch Ball Mount, 4" Drop #1803056

Stock# 1326117
Solid shank, black finish, straight-cut ball mount rated at 10,000 lbs. (GTW).
Length = 8", Rise = 2-3/4", Drop = 4", fits 1-1/4" ball shank.
$33.95
Utility 2-1/2" sq. Trailer Hitch Ball Mount, 3" Drop #1803405
Utility 2-1/2" sq. Trailer Hitch Ball Mount, 3" Drop #1803405

Stock# 1326386
Black finish, straight-cut ball mount rated at 12000 lbs. (GTW).
Length = 10", Rise = 1-1/2", Drop = 3", fits 1-1/4" ball shank.
$45.99
Utility 2-1/2" sq. Trailer Hitch Ball Mount, 5" Drop #1803410
Utility 2-1/2" sq. Trailer Hitch Ball Mount, 5" Drop #1803410

Stock# 1326387
Black finish, straight-cut ball mount rated at 12000 lbs. (GTW).
Length = 10", Rise = 3", Drop = 5", fits 1-1/4" ball shank.
$49.99
Adjustable 2" sq. Trailer Hitch Ball Mount #1803090
Adjustable 2" sq. Trailer Hitch Ball Mount #1803090

Stock# 1326118
Black powder coat finish, rated at 5000 lbs. (GTW).
Shank Length = 10", Max. Rise = 9-3/4", Max. Drop = 11", fits 1" ball shank.
$49.95
Adjustable Quick Release 2" sq. Hitch Ball Mount #6580
Adjustable Quick Release 2" sq. Hitch Ball Mount #6580

Stock# 5223056
Black powder coat finish quick release ball mount rated at 6000 lbs. (GTW) & 600 lbs. (TW). Shank Length = 12"
$79.95
Tilt-A-Hitch® Ball Mount #1802300
Tilt-A-Hitch® Ball Mount #1802300

Stock# 1326403
Tilt-A-Hitch® ball mount converts any trailer into a tilting trailer. Provides a simple tilt adjustment at the hitch to increase ground clearance between load ramps and trailer floor.
$129.00
TRI-Ball Hitch Mount with Pintle Hook #1802279
TRI-Ball Hitch Mount with Pintle Hook #1802279

Stock# 1326153
1-7/8" ball rated at 6,000 lbs. (GTW), 2" ball rated at 7,500 lbs. (GTW), & 2-5/16" ball rated at 10,000 lbs. (GTW), Pintle Capacity 7500 lbs. (GTW)
$89.99
Adjustable TRI-Ball Hitch Mount, 1-7/8", 2" & 2-5/16" #1802225
Adjustable TRI-Ball Hitch Mount, 1-7/8", 2" & 2-5/16" #1802225

Stock# 1326031
Solid 2" sq. receiver tube, welded steel tow balls, black powder coated finish. 1-7/8" ball rated at 6,000 lbs. (GTW), 2" ball rated at 7,500 lbs. (GTW), & 2-5/16" ball rated at 10,000 lbs. (GTW).
$149.00
Multi-Ball Triple Ball Mount, 1-7/8", 2", & 2-5/16" #1802200
Multi-Ball Triple Ball Mount, 1-7/8", 2", & 2-5/16" #1802200

Stock# 1326060
Solid 2" sq. receiver tube, welded steel tow balls, black powder coated finish. 1-7/8" ball rated at 6,000 lbs. (GTW), 2" ball rated at 7,500 lbs. (GTW), & 2-5/16" ball rated at 10,000 lbs. (GTW)
$42.95
Tri-Ball Mount w/Hook, 1-7/8", 2", & 2-5/16" #1802208
Tri-Ball Mount w/Hook, 1-7/8", 2", & 2-5/16" #1802208

Stock# 1326424
Solid 2" sq. receiver tube, welded steel tow balls/hook, black powder coated finish. 1-7/8" ball rated at 6,000 lbs. (GTW), 2" ball rated at 7,500 lbs. (GTW), & 2-5/16" ball rated at 10,000 lbs. (GTW), hook rated at 10,000 lbs.
$64.95
Boxer Hitch Adjustable Tri-Ball Mount w/Acc Pin Position #1802310
Boxer Hitch Adjustable Tri-Ball Mount w/Acc Pin Position #1802310

Stock# 1326427
The Boxer hitch adjustable tri-ball mount with accessory pin has a solid 2" sq. receiver tube. Mount fits (3) 1" shafts and (1) 1-1/4" shaft. Rated at 12,000 lbs. (GTW) and 1,200 lbs. tongue weight.

$129.95
12" Hitch Receiver Tube Extension, 2" sq. #1804005
12" Hitch Receiver Tube Extension, 2" sq. #1804005

Stock# 1326044
2" square tube x 12" long receiver tube extension.
$49.95
18" Hitch Receiver Tube Extension, 2" sq. #1804007
18" Hitch Receiver Tube Extension, 2" sq. #1804007

Stock# 1326045
2" square tube x 18" long receiver tube extension.
$64.95
12" Hitch Receiver Tube Extension w/Step, 2" sq. #1804015
12" Hitch Receiver Tube Extension w/Step, 2" sq. #1804015

Stock# 1326303
2" square tube x 12" long receiver tube extension with a 6" x 17" step.
$49.99
18" Hitch Receiver Tube Extension w/Step, 2" sq. #1804017
18" Hitch Receiver Tube Extension w/Step, 2" sq. #1804017

Stock# 1326304
2" square tube x 18" long receiver tube extension with a 6" x 17" step.
$69.95
2" Forged Trailer King Pin, .38" Bolster Plate #KP20038
2" Forged Trailer King Pin, .38" Bolster Plate #KP20038

Stock# 1326245
King Pins are easily weldable due to design and material. The 8630 steel provides for good material weldability, saving time and money in installation and replacement.

$58.95
Receiver Tube Adapter, 2.5" to 2" Square #RTA252
Receiver Tube Adapter, 2.5" to 2" Square #RTA252

Stock# 1326249
Reducer sleeve slides inside 2-1/2" square tube receiver and accepts all 2" hitch accessories. Zinc plated steel construction with rounded corners & 5/8" hitch pin hole.

$15.99
TRAILER HANDBOOK Guide to Understanding Trailers & Towing Safety
TRAILER HANDBOOK Guide to Understanding Trailers & Towing Safety

Stock# 5344001
The authors discuss the dynamics of the tow vehicle and the trailer, important aspects of the trailer, followed by key considerations in maintaining your trailer. The end of the book provides various appendices of helpful information, including a glossary of terms and resources for more research and information. Published by The National Association of Trailer Manufacturers

$15.95
