5,200 lb. Capacity Round Tube Trailer Axles
5,200 lb. Capacity Round Tube Trailer Axles
3" Diameter x 3/16" wall round tube, black painted finish, cambered design trailer axle. All axles include spindle nuts, cotter pins, and spring seats (seats need to be welded to complete installation). 5-Hole Brake flange is attached.
Spindle size is 1-3/4" x 1-1/4" with grease seal lip ID of 2.25"
CAMBER: Axles are cambered or 'road set' so there is a bow until weight is put on the axle. All cambered axles should be mounted with the center bow up.

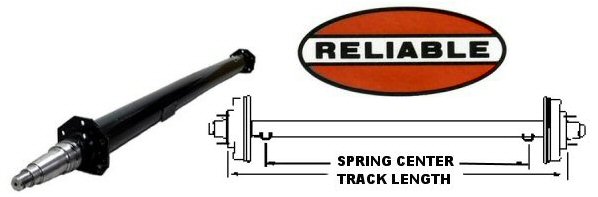

Track Length = distance from hub face to hub face
Trailer Parts Tech Tip: HOW TO MEASURE & SELECT THE PROPER AXLE
-
PARAISO 73" Round Tube Straight Trailer Axle (5,200 lb.) #BM27Stock# 7160115
Learn More
Track Length = 73" Overall = 79.82" Spring Center = 55"-61" Includes pre-attached 5-hole brake mounting flanges. PARAISO 3" Diameter round tube trailer axle, black painted finish, cambered design axle includes spindle nuts, spindle washers, cotter pins, and spring seats.$180.00 -
PARAISO 75" Round Tube Straight Trailer Axle (5,200 lb.) #BM28Stock# 7160116
Learn More
Track Length = 75" Overall = 81.82" Spring Center = 57"-63" Includes pre-attached 5-hole brake mounting flanges. PARAISO 3" Diameter round tube trailer axle, black painted finish, cambered design axle includes spindle nuts, spindle washers, cotter pins, and spring seats.$180.00 -
-34%PARAISO 77" Round Tube Straight Trailer Axle (5,200 lb.) #BM29Stock# 7160117
Learn More
Track Length = 77" Overall = 83.82" Spring Center = 59"-65" Includes pre-attached 5-hole brake mounting flanges. PARAISO 3" Diameter round tube trailer axle, black painted finish, cambered design axle includes spindle nuts, spindle washers, cotter pins, and spring seats.Special Price $119.00 was $180.00 -
PARAISO 79" Round Tube Straight Trailer Axle (5,200 lb.) #BM30Stock# 7160118
Learn More
Track Length = 79" Overall = 85.82" Spring Center = 61"-67" Includes pre-attached 5-hole brake mounting flanges. PARAISO 3" Diameter round tube trailer axle, black painted finish, cambered design axle includes spindle nuts, spindle washers, cotter pins, and spring seats.$180.00 -
PARAISO 81" Round Tube Straight Trailer Axle (5,200 lb.) #BM31Stock# 7160119
Learn More
Track Length = 81" Overall = 87.82" Spring Center = 63"-69" Includes pre-attached 5-hole brake mounting flanges. PARAISO 3" Diameter round tube trailer axle, black painted finish, cambered design axle includes spindle nuts, spindle washers, cotter pins, and spring seats.$180.00 -
PARAISO 83" Round Tube Straight Trailer Axle (5,200 lb.) #BM32Stock# 7160120
Learn More
Track Length = 84" Overall = 89.82" Spring Center = 65"-71" Includes pre-attached 5-hole brake mounting flanges. PARAISO 3" Diameter round tube trailer axle, black painted finish, cambered design axle includes spindle nuts, spindle washers, cotter pins, and spring seats.$180.00 -
DEXTER 84" Round Tube Straight Trailer Axle (5,200 lb.) #4766689Stock# 5432027
Learn More
Track Length = 84" Overall = 89.82" Spring Center = 65"-71" Includes pre-attached 5-hole brake mounting flanges. DEXTER 3" diameter round tube trailer axle includes spindle nuts, nut retainers, D-washers, and spring seats.$269.00 -
DEXTER 86" Round Tube Straight Trailer Axle (5,200 lb.) #4766691Stock# 5432028
Learn More
Track Length = 86" Overall = 91.82" Spring Center = 67"-73" Includes pre-attached 5-hole brake mounting flanges. DEXTER 3" diameter round tube trailer axle includes spindle nuts, nut retainers, D-washers, and spring seats.$269.00 -
-34%PARAISO 87" Round Tube Straight Trailer Axle (5,200 lb.) #BM34Stock# 7160122
Learn More
Track Length = 87" Overall = 93.82" Spring Center = 69"-75" Includes pre-attached 5-hole brake mounting flanges. PARAISO 3" Diameter round tube trailer axle, black painted finish, cambered design axle includes spindle nuts, spindle washers, cotter pins, and spring seats.Special Price $119.00 was $180.00 -
DEXTER 88" Round Tube Straight Trailer Axle (5,200 lb.) #4766693Stock# 5432029
Learn More
Track Length = 88" Overall = 93.82" Spring Center = 68"-75" Includes pre-attached 5-hole brake mounting flanges. DEXTER 3" diameter round tube trailer axle includes spindle nuts, nut retainers, D-washers, and spring seats.$269.00 -
DEXTER 90" Round Tube Straight Trailer Axle (5,200 lb.) #4766695Stock# 5432030
Learn More
Track Length = 90" Overall = 95.82" Spring Center = 71"-77" Includes pre-attached 5-hole brake mounting flanges. DEXTER 3" diameter round tube trailer axle includes spindle nuts, nut retainers, D-washers, and spring seats.$269.00 -
PARAISO 91" Round Tube Straight Trailer Axle (5,200 lb.) #BM36Stock# 7160124
Learn More
Track Length = 91" Overall = 97.82" Spring Center = 73"-79" Includes pre-attached 5-hole brake mounting flanges. PARAISO 3" Diameter round tube trailer axle, black painted finish, cambered design axle includes spindle nuts, spindle washers, cotter pins, and spring seats.$180.00 -
DEXTER 92" Round Tube Straight Trailer Axle (5,200 lb.) #4766697Stock# 5432031
Learn More
Track Length = 92" Overall = 97.82" Spring Center = 73"-79" Includes pre-attached 5-hole brake mounting flanges. DEXTER 3" diameter round tube trailer axle includes spindle nuts, nut retainers, D-washers, and spring seats.$269.00 -
DEXTER 94" Round Tube Straight Trailer Axle (5,200 lb.) #4766699Stock# 5432032
Learn More
Track Length = 94" Overall = 99.82" Spring Center = 75"-81" Includes pre-attached 5-hole brake mounting flanges. DEXTER 3" diameter round tube trailer axle includes spindle nuts, nut retainers, D-washers, and spring seats.$269.00 -
DEXTER 96" Round Tube Straight Trailer Axle (5,200 lb.) #4766701Stock# T5432033
Learn More
Track Length = 96" Overall = 101.82" Spring Center = 77"-83" Includes pre-attached 5-hole brake mounting flanges. DEXTER 3" diameter round tube trailer axle includes spindle nuts, nut retainers, D-washers, and spring seats.
Ships 'Truck Freight' and is subject to delivery service limitations. (Click Truck
for details)$269.00
