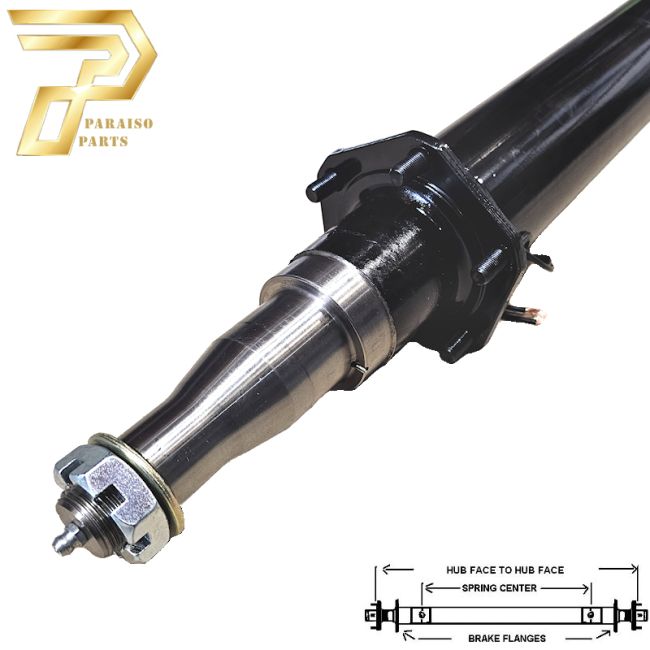

PARAISO 91" Round Tube Straight Trailer Axle (5,200 lb.) #BM36

Stock# 7160124
Track Length = 91" Overall = 97.82" Spring Center = 73"-79" Includes pre-attached 5-hole brake mounting flanges. PARAISO 3" Diameter round tube trailer axle, black painted finish, cambered design axle includes spindle nuts, spindle washers, cotter pins, and spring seats.

$180.00

SKU

7160124

Details

CLICK FOR AXLE MEASURING INSTRUCTIONS
PARAISO 3" Diameter round tube trailer axle, black painted finish, cambered design axle includes spindle nuts, spindle washers, cotter pins, and spring seats.

*Spring seats will need to be welded to complete installation.

*OEM equivalent quality. Paraiso Axles replace Dexter, AL-KO, Hayes, and Lippert Axles.

CAMBER: Axles are cambered or 'road set' so there is a bow until weight is put on the axle. All cambered axles should be mounted with the center bow up. This axle includes pre-attached brake mounting flanges (5-hole).

Axle Type: Round/Straight
Load Rating: 5,200 lbs.
Track Length: 91" Hub Face to Hub Face
Spring Center: 73" - 79"
Overall Length: 97.82"
Outside to Outside Brake Flange: 83-1/4"
Spindle Size: 1-3/4" x 1-1/4" (grease seal lip I.D. = 2.25")
