TIEDOWN 56.75" Square Galvanized Trailer Axle, 11 Ga. (2,000 lb.) #G-50028
Stock# 7125162

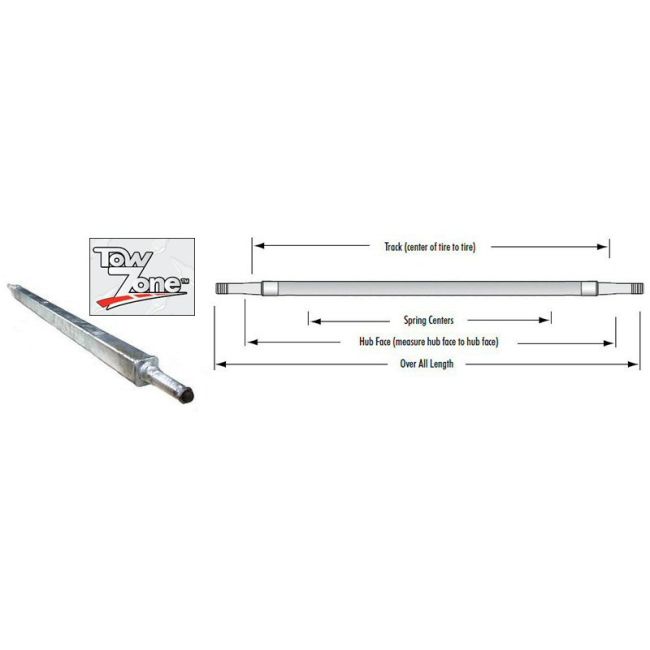

Overall Length = 61" Hub Face = 56.75" Spring Center = Recommended 45" Capacity = 2,000 lbs.
Axle weldment with spindles, spindle nuts & cotter pins. Wheel hubs & bearings sold separately.
Universal replacement axle for trailers. Galvanized axle stock weldment only. Features a stainless steel wear sleeve. Wheel Hubs and bearings sold separately.
Axle Type: 1-1/2" x 1-1/2" Square - Galvanized
Load Rating: 2,000 lbs. (11 Gauge)
Overall Length: 61" End of Spindle to End of Spindle
Spring Center: 45" (Pre-Drilled)
Hub Face: 56.75"
Hub Type: 4 or 5 bolt (Not Included)
Spindle Size: 1-1/16" x 1-1/16"
Camber: 1° Per Side Welded at Spindles
Note: Axles are shipped without drain hole. It is the customer's responsibility to drill a 5/16" drain hole. Axles are non-returnable once holes have been drilled.
| Product Name | TIEDOWN 56.75" Square Galvanized Trailer Axle, 11 Ga. (2,000 lb.) #G-50028 |
|---|
