1.5 inch Diameter Square Galvanized Trailer Axles
1-1/2" Diameter Square Galvanized Trailer Axles
1-1/2" x 1-1/2" Square, Galvanized Trailer Axle feature a stainless steel wear sleeve. No brake flange attached. Wheel Hubs and bearings sold separately on some models.
Trailer Parts Tech Tip:

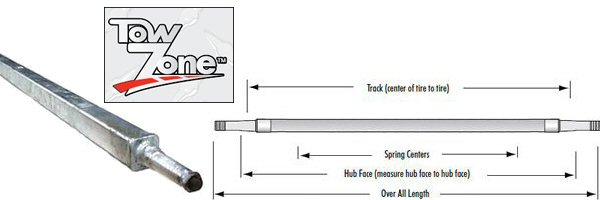

HOW TO MEASURE & SELECT AN AXLE
-
CONTINENTAL 48.25" Square Galvanized Trailer Axle (1,200 lb.) #510-0533Stock# 5442031
Learn More
Overall Length = 53-1/4" Hub Face = 48.25" Spring Center = Recommended 37.50" Capacity = 1,200 lbs. Axle weldment includes stainless steel wear sleeves. Wheel Hubs, axle nuts, washers, and bearings sold separately.$199.00 -
CONTINENTAL 51.25" Square Galvanized Trailer Axle (1,200 lb.) #510-0563Stock# 5442030
Learn More
Overall Length = 56-1/4" Hub Face = 51.25" Spring Center = Recommended 38.50" Capacity = 1,200 lbs. CONTINENTAL axle weldment includes stainless steel wear sleeves. Wheel Hubs, axle nuts, washers, and bearings sold separately.$199.00 -
TIEDOWN 59.50" Square Galvanized Trailer Axle (1,500 lb.) #G-46061Stock# 7125212
Learn More
Overall Length = 64" Hub Face = 59.50" Spring Center = Recommended 46.50" Capacity = 1,500 lbs.
Axle weldment with spindles, spindle nuts & cotter pins. Wheel hubs & bearings sold separately.$138.25 -
TIEDOWN 57.50" Square Galvanized Trailer Axle (1,800 lb.) #G-201348Stock# 7125163
Learn More
Overall Length = 62" Hub Face = 57.50" Spring Center = Recommended 46.50" Capacity = 1,800 lbs.
Axle weldment with spindles, spindle nuts & cotter pins. Wheel hubs & bearings sold separately.$145.00 -
TIEDOWN 49.25" Square Galvanized Trailer Axle (2,000 lb.) #G-46032Stock# 7125160
Learn More
Overall Length = 54" Hub Face = 49.25" Spring Center = Recommended 38.50" Capacity = 2,000 lbs.
Axle weldment with spindles, spindle nuts & cotter pins. Wheel hubs & bearings sold separately.$145.00 -
TIEDOWN 51.25" Square Galvanized Trailer Axle (2,000 lb.) #G-46036Stock# 7125161
Learn More
Overall Length = 56" Hub Face = 51.25" Spring Center = Recommended 38.50" Capacity = 2,000 lbs.
Axle weldment with spindles, spindle nuts & cotter pins. Wheel hubs & bearings sold separately.$145.00 -
TIEDOWN 53.25" Square Galvanized Trailer Axle (2,000 lb.) #G-49975Stock# 7125215
Learn More
Overall Length = 58" Hub Face = 53.25" Spring Center = Recommended 42.25" Capacity = 2,000 lbs.
Axle weldment with spindles, spindle nuts & cotter pins. Wheel hubs & bearings sold separately.$142.95 -
TIEDOWN 56.75" Square Galvanized Trailer Axle, 11 Ga. (2,000 lb.) #G-50028Stock# 7125162
Learn More
Overall Length = 61" Hub Face = 56.75" Spring Center = Recommended 45" Capacity = 2,000 lbs.
Axle weldment with spindles, spindle nuts & cotter pins. Wheel hubs & bearings sold separately.$175.00 -
TIEDOWN 61.75" Square Galvanized Trailer Axle, 11 Ga. (2,000 lb.) #G-50029Stock# 7125164
Learn More
Overall Length = 66" Hub Face = 61.75" Spring Center = Recommended 50" Capacity = 2,000 lbs. Axle weldment with spindles, spindle nuts & cotter pins. Wheel hubs & bearings sold separately.$175.00 -
ROAD KING 49" Square Galvanized Trailer Axle (1,500 lb.) #GAI1560X49Stock# 5430024
Learn More
Overall Length = 54" Hub Face = 49" Spring Center = Recommended 39" Capacity = 1,500 lbs.
ROAD KING Factory OEM Axle weldment and hub assembly with 4-on-4" lug pattern.$309.00 -
ROAD KING 57" Square Galvanized Trailer Axle (1,500 lb.) #GAI1560X57Stock# 5430025
Learn More
Overall Length = 62" Hub Face = 57" Spring Center = Recommended 46" Capacity = 1,500 lbs.
ROAD KING Factory OEM Axle weldment and hub assembly with 4-on-4" lug pattern.$309.00 -
KARAVAN - KNOTT 53" Galvanized Trailer Axle (1,500 lb.) #310-00333-GLStock# 5419032
Learn More
Overall Length = 58" Hub Face = 53" Spring Center = 42-1/4" AUTOFLEX-KNOTT makes this KARAVAN original equipment factory replacement trailer axle. Axle weldment includes hubs, bearings, seal and dust cap. Lug nuts sold separately.$199.00 -
1.5" Square (1,500 lb.) LOADRITE Trailer Axle #6090.92GBStock# 1041210
Learn More
Factory replacement axle for LOADRITE Boat Trailers. Galvanized axle stock, includes pre-lubed hubs with bearings, seals and super lube dust caps. Wheel hubs have rear tapped zerk fitting for easy installation of fresh bearing grease. Does NOT come with lug nuts.
Track Length = 56.50" Spring Center = 45" Hub Assembly = 5-on-4.5" lug pattern$344.95 -
SEA LION 1.5" Square (2,000 lb.) Trailer Axle, 56-3/4" H.F. #30157Stock# 5454016
Learn More
Factory replacement axle for SeaLion / TideWater PWC Trailers. Galvanized axle stock, includes pre-lubed hubs with bearings, seals and super lube dust caps. Wheel hubs have rear tapped zerk fitting for easy installation of fresh bearing grease. Does NOT come with lug nuts.
Track Length = 56-3/4" Spring Center = 45" Hub Assembly = 5-on-4.5" lug pattern$319.00
