TIEDOWN 73.25" Square Galvanized Trailer Axle (3,500 lb.) #G-49550
Stock# 7125152

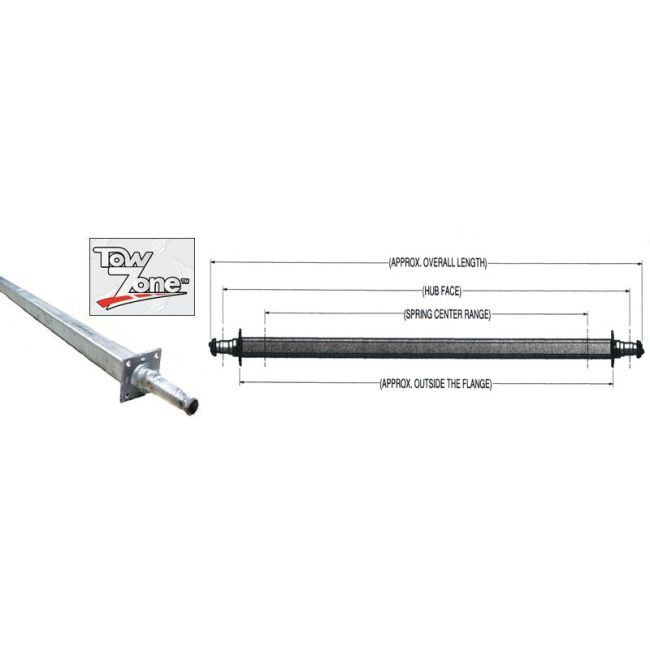

Overall Length = 78" Hub Face = 73.25" Spring Center = Recommended Range 57.75" - 61.75"
Brake Flange = 67" Axle weldment only, hubs & bearings sold separately.
Universal replacement axle for trailers. Galvanized axle stock weldment only. Features a stainless steel wear sleeve and a super lube grease zerks. Wheel Hubs and bearings sold separately.
Axle Type: 2" x 2" Square - Galvanized
Load Rating: 3,500 lbs.
Overall Length: 78" End of Spindle to End of Spindle
Spring Center: Recommended 57.75" - 61.75"
Hub Face: 73.25"
Brake Flange (Outside): 67-1/4"
Hub Type: 5 bolt (Not Included)
Spindle Size: 1-3/8" x 1-1/16"
Camber: 1° Per Side Welded at Spindles
Note: Axles are shipped without spring seat holes. It is the customer's responsibility to drill spring holes to the trailers specs. Axles are non-returnable once holes have been drilled.
| Product Name | TIEDOWN 73.25" Square Galvanized Trailer Axle (3,500 lb.) #G-49550 |
|---|
