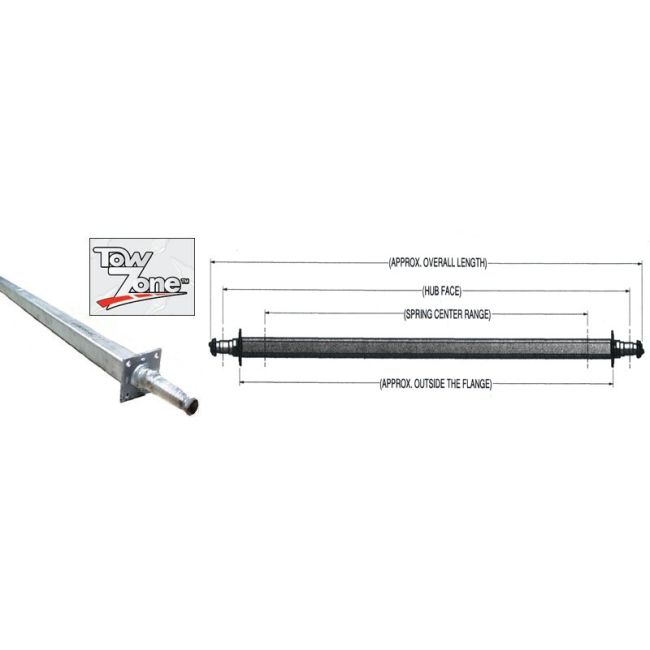

TIEDOWN 79.25" Square Galvanized Trailer Axle (3,500 lb.) #49557

Rating:
80 % of 100

Stock# 7125154
Overall Length = 84" Hub Face = 79.25" Spring Center = Recommended Range 63.75" - 67.75"
Brake Flange = 73" Axle weldment only, hubs & bearings sold separately.

$215.00
SKU
7125154

Universal replacement axle for trailers. Galvanized axle stock weldment only. Features a stainless steel wear sleeve and a super lube grease zerks. Wheel Hubs and bearings sold separately.

Axle Type: 2" x 2" x 1/4" Square - Galvanized
Load Rating: 3,500 lbs.
Overall Length: 84" End of Spindle to End of Spindle
Spring Center: Recommended 63.75" - 67.75"
Hub Face: 79.25"
Brake Flange (Outside): 73-1/8"
Hub Type: 5 bolt (Not Included)
Spindle Size: 1-3/8" x 1-1/16"
Camber: 1° Per Side Welded at Spindles

Note: Axles are shipped without spring seat holes. It is the customer's responsibility to drill spring holes to the trailers specs. Axles are non-returnable once holes have been drilled.



Brand
Dexter Marine
Manufacturer Part Number
49557
More Information
Product Name TIEDOWN 79.25" Square Galvanized Trailer Axle (3,500 lb.) #49557
