TIEDOWN 85.25" Square Galvanized Trailer Axle (3,500 lb.) #G-49559
Stock# 7125156

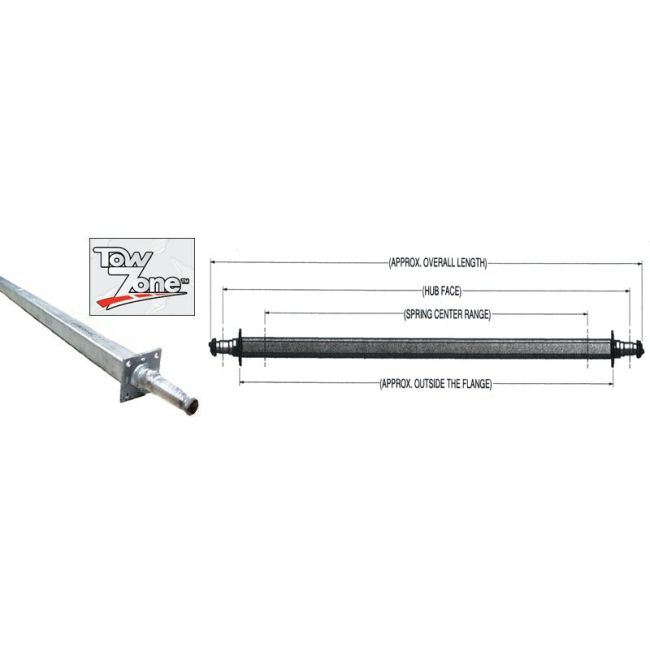

Overall Length = 90" Hub Face = 85.25" Spring Center = Recommended Range 69.75" - 73.75"
Brake Flange = 79" Axle weldment only, hubs & bearings sold separately.
Universal replacement axle for trailers. Galvanized axle stock weldment only. Features a stainless steel wear sleeve and a super lube grease zerks. Wheel Hubs and bearings sold separately.
Axle Type: 2" x 2" x 1/4" Square - Galvanized
Load Rating: 3,500 lbs.
Overall Length: 90" End of Spindle to End of Spindle
Spring Center: Recommended 69.75" - 73.75"
Hub Face: 85.25"
Brake Flange (Outside): 81-3/8"
Hub Type: 5 bolt (Not Included)
Spindle Size: 1-3/8" x 1-1/16"
Camber: 1° Per Side Welded at Spindles
Note: Axles are shipped without spring seat holes. It is the customer's responsibility to drill spring holes to the trailers specs. Axles are non-returnable once holes have been drilled.
