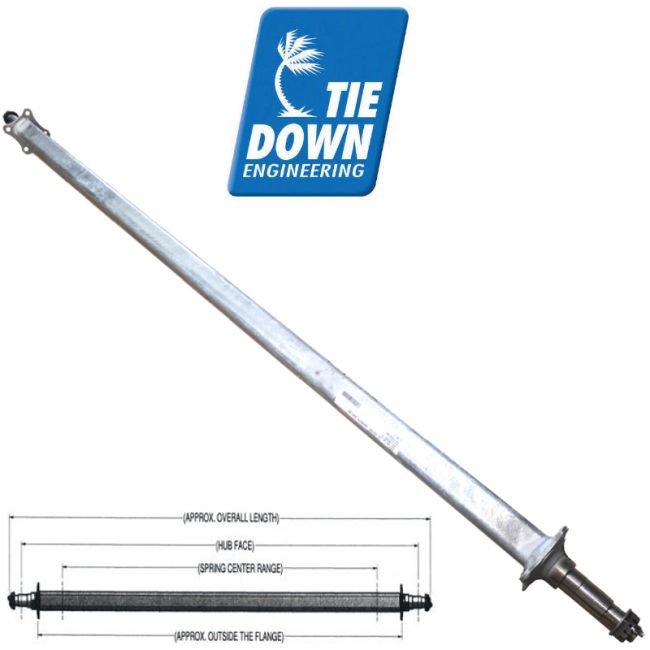

TIEDOWN 93" Square Galvanized Trailer Axle (3,500 lb.) #G-50276

Stock# 7125285
Overall Length = 98" Hub Face = 93" Spring Center = Recommended Range 77.5" - 81.5"
Brake Flange = 87" Axle weldment only, hubs & bearings sold separately.

$311.00

SKU

7125285

Details

Universal replacement axle for trailers. Galvanized axle stock weldment only. Features a stainless steel wear sleeve and a super lube grease zerks. Wheel Hubs and bearings sold separately.

Axle Type: 2" x 2" x 1/4" Square - Galvanized
Load Rating: 3,500 lbs.
Overall Length: 98" End of Spindle to End of Spindle
Spring Center: Recommended 77.5" - 81.5"
Hub Face: 93"
Brake Flange (Outside): 87"
Hub Type: 5 bolt (Not Included)
Spindle Size: 1-3/8" x 1-1/16"
Camber: 1° Per Side Welded at Spindles

Note: Axles are shipped without spring seat holes. It is the customer's responsibility to drill spring holes to the trailers specs. Axles are non-returnable once holes have been drilled.
