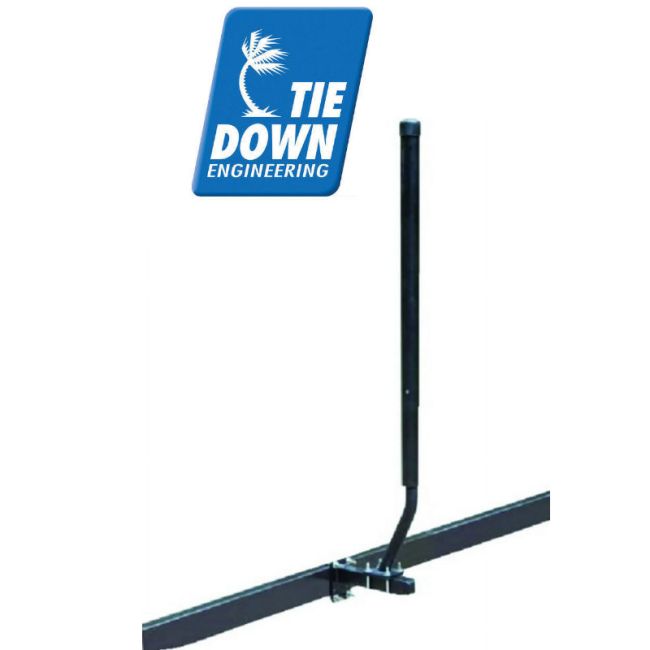

TIEDOWN Boat Trailer Adjustable Guide On's, Black (1-pair) #86568

Stock# 5256366
The floating guide post features the ability to adjust the overall height from 48” to 60”. The metal tube is made from heavy-duty 14 gauge steel, pre-galvanized, and powder coated for a durable finish. It features a 30 degree slant through the bottom 18” to allow for varying hull shapes. The black PVC pipe is non-marring and designed to hide the floating slot and holes for a clean look. Mounts to 3" and 4" tall trailer frames. All mounting hardware included.

$159.00

SKU

5256366

Details

The floating guide post features the ability to adjust the overall height from 48” to 60”. The metal tube is made from heavy-duty 14 gauge steel, pre-galvanized, and powder coated for a durable finish. It features a 30 degree slant through the bottom 18” to allow for varying hull shapes. The black PVC pipe is non-marring and designed to hide the floating slot and holes for a clean look. Mounts to 3" and 4" tall trailer frames. All mounting hardware included.

Kit Includes:

00000 (QTY:2) - PVC Posts, Black
43034 (QTY:2) - 14 ga. Post Weldment
12215 (QTY:4) - O-Ring
12216 (QTY:2) - 2-1/4" L Barrel Pin
48672 (QTY:2) - 2" x 2" End Cap
48678 (QTY:2) - Damper Side Mount
10627 (QTY:16) - Grade 2 Zinc Nylock Nut, 3/8"-16
10502 (QTY:16) - Zinc Flat Washer, 3/8"
83074-1Z (QTY:4) - Zinc U-Bolt, 3/8" x 3.19" x 3.75"
83075-1Z (QTY:4) - Zinc U-Bolt, 3/8" x 4.19" x 3.75"
83073Z (QTY:4) - Zinc U-Bolt, 3/8" x 2.19" x 3.5"
44049 (QTY:2) - Weldment Side Guide
