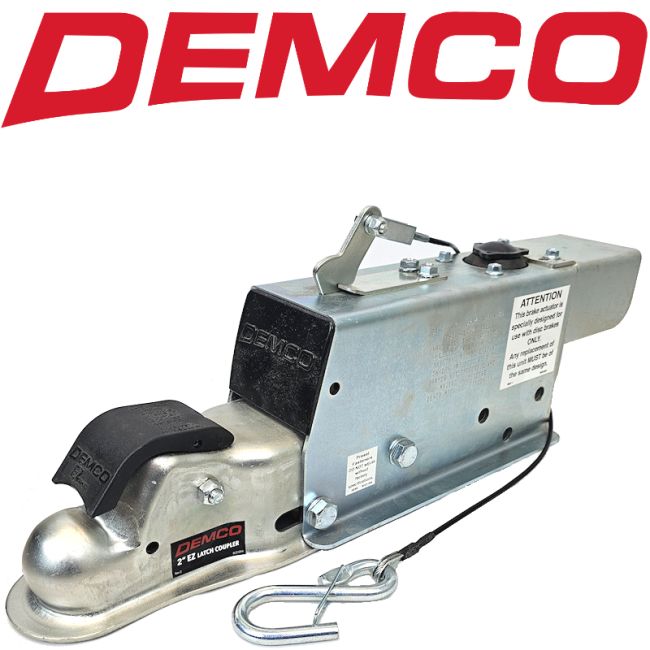

DEMCO EZ Latch Disc Brake Actuator w/Solenoid, 7K #8705101
Stock# 1651045
DEMCO Hydraulic trailer brake actuator with zinc plated finish and a rated capacity of 7,000 lbs. For DISC BRAKE applications only. Mounting holes are on a 3" center front to back. Provides enough fluid displacement to supply up to four 10" disc style trailer brakes.
DEMCO Hydraulic Surge Brake Actuator with Zinc plated finish for maximum corrosion protection. Rated capacity: 7,000 lbs, for disc brake applications. Mounting holes are on a 3" center front to back. This model DA70 actuator is intended for light occasional use on recreational, marine, and utility trailers, which are towed by passenger cars or pickups. The actual in-service rating is limited to that of the ball and hitch being used or the trailer manufacturer's G.V.W.R. shown on the certification label, whichever is lower. The actuator will provide enough fluid displacement to supply up to four 10" disc style trailer brakes.
Rated Capacity: 7,000 lbs
Ball Size: 2"
Brake Lock-Out: YES
Frame Width: 3"
* Includes Electric Reversing Solenoid
| Product Name | DEMCO EZ Latch Disc Brake Actuator w/Solenoid, 7K #8705101 |
|---|
