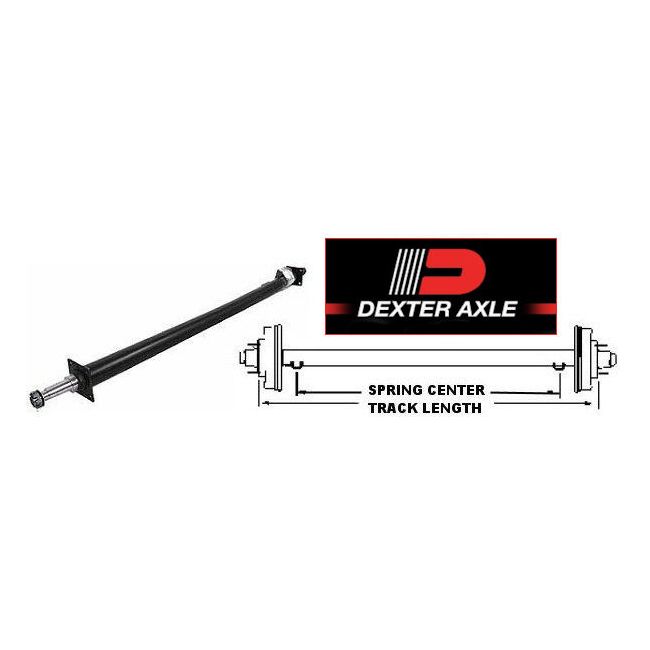

DEXTER 76" Round Tube Straight Trailer Axle (3,500 lb.) #4766649

Stock# 5432007
Track Length = 76" Overall = 80.75" Spring Center = 58"-66"   DEXTER 2-3/8" diameter round tube trailer axle includes EZ-Lube Spindles, spindle nuts, nut retainers, D-washers, and spring seats.

$180.00
SKU
5432007

CLICK FOR AXLE MEASURING INSTRUCTIONS
DEXTER 2-3/8" diameter round tube trailer axle has a black painted finish and cambered design. All axles include spindle nuts, nut retainers, D-washers, and spring seats (seats need to be welded to complete installation). CAMBER: Axles are cambered or 'road set' so there is a bow until weight is put on the axle. All cambered axles should be mounted with the center bow up. This axle includes pre-attached brake mounting flanges (4-hole). Flange mounting holes are on 2-7/8" centers.

Axle Type: Round/Straight
Load Rating: 3,500 lbs.
Track Length: 76" Hub Face to Hub Face
Spring Center: 58" - 66"
Overall Length: 80.75"
Outside to Outside Brake Flange: 69-5/8"
Spindle Size: 1-3/8" x 1-1/16" EZ-Lube Spindles

Brand
Dexter Axle
Manufacturer Part Number
4766649
