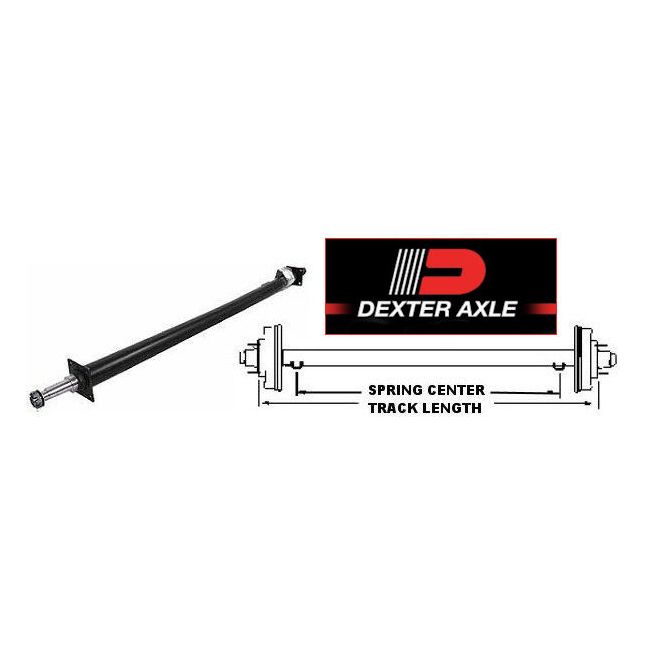

DEXTER 86" Round Tube Straight Trailer Axle (3,500 lb.) #4766659
Stock# 5432012 FREE GROUND SHIPPING TO LOWER-48 U.S.
Track Length = 86" Overall = 90.75" Spring Center = 68"-76" Includes EZ-Lube Spindles. DEXTER 2-3/8" diameter round tube trailer axle includes spindle nuts, nut retainers, D-washers, and spring seats.
CLICK FOR AXLE MEASURING INSTRUCTIONS
DEXTER 2-3/8" diameter round tube trailer axle has a black painted finish and cambered design. All axles include spindle nuts, nut retainers, D-washers, and spring seats (seats need to be welded to complete installation). CAMBER: Axles are cambered or 'road set' so there is a bow until weight is put on the axle. All cambered axles should be mounted with the center bow up. This axle includes pre-attached brake mounting flanges (4-hole). Flange mounting holes are on 2-7/8" centers.
Axle Type: Round/Straight
Load Rating: 3,500 lbs.
Track Length: 86" Hub Face to Hub Face
Spring Center: 68" - 76"
Overall Length: 90.75"
Spindle Size: 1-3/8" x 1-1/16" EZ-Lube Spindles
Brake Flange (Outside): 79-1/2"
Product Name | DEXTER 86" Round Tube Straight Trailer Axle (3,500 lb.) #4766659 |
---|
