DEXTER 90" Round Tube 4" Drop Trailer Axle (3,500 lb.) #4766677
Stock# 5432021

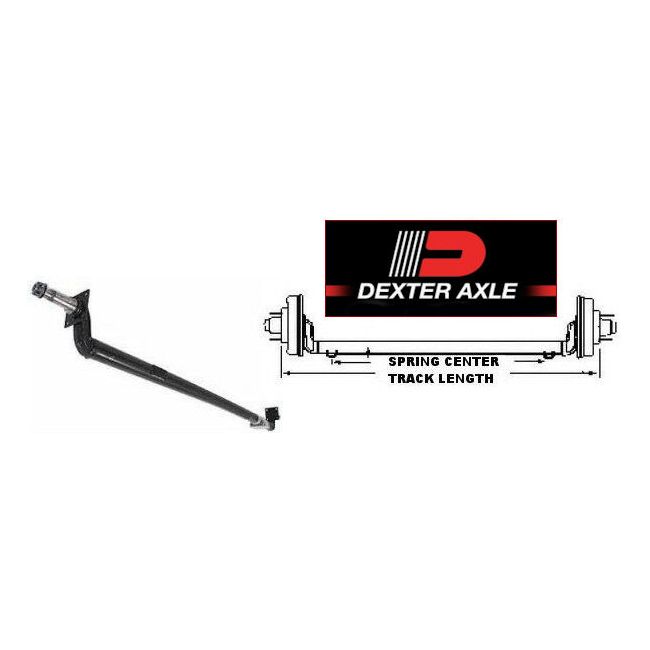

Track Length = 90" Overall = 94.75" Spring Center = 72"-76" Includes EZ-Lube Spindles. DEXTER 2-3/8" diameter round tube trailer axle includes spindle nuts, nut retainers, D-washers, and spring seats.
CLICK FOR AXLE MEASURING INSTRUCTIONS
DEXTER 2-3/8" diameter round tube trailer axle has a black painted finish and cambered design. All axles include spindle nuts, nut retainers, D-washers, and spring seats (seats need to be welded to complete installation). CAMBER: Axles are cambered or 'road set' so there is a bow until weight is put on the axle. All cambered axles should be mounted with the center bow up. This axle includes pre-attached brake mounting flanges (4-hole). Flange mounting holes are on 2-7/8" centers.
Axle Type: Round/Drop
Load Rating: 3,500 lbs
Drop: 4"
Track Length: 90" Hub Face to Hub Face
Spring Center: 72" - 76"
Overall Length: 94.75"
Spindle Size: 1-3/8" x 1-1/16" EZ-Lube Spindles
Brake Flange (Outside): 84"
| Product Name | DEXTER 90" Round Tube 4" Drop Trailer Axle (3,500 lb.) #4766677 |
|---|
