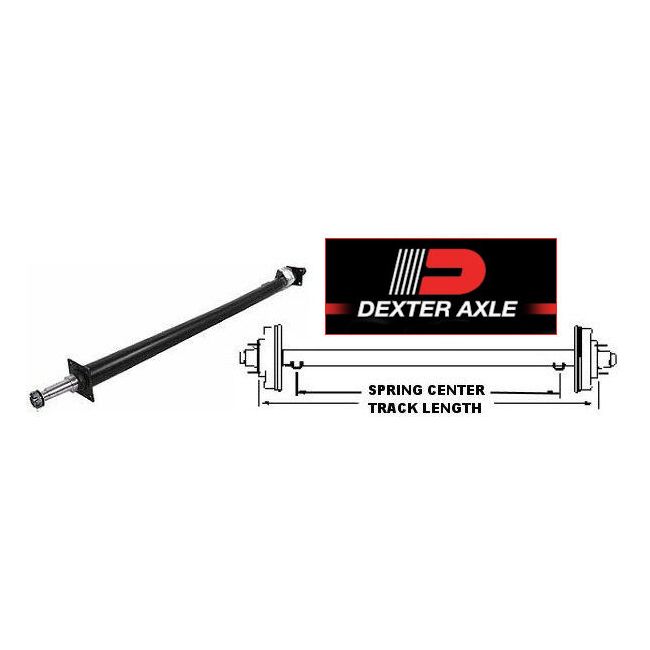

DEXTER 93" Round Tube Straight Trailer Axle (3,500 lb.) #5361534

Rating:
100 % of 100

Stock# 5432077
Track Length = 93" Overall = 97.75" Spring Center = 75"-83"   Includes EZ-Lube Spindles.  DEXTER 2-3/8" diameter round tube trailer axle includes spindle nuts, nut retainers, D-washers, and spring seats.

$180.00
SKU
5432077

CLICK FOR AXLE MEASURING INSTRUCTIONS
DEXTER 2-3/8" diameter round tube trailer axle has a black painted finish and cambered design. All axles include spindle nuts, nut retainers, D-washers, and spring seats (seats need to be welded to complete installation). CAMBER: Axles are cambered or 'road set' so there is a bow until weight is put on the axle. All cambered axles should be mounted with the center bow up. This axle includes pre-attached brake mounting flanges (4-hole). Flange mounting holes are on 2-7/8" centers.

Axle Type: Round/Straight
Load Rating: 3,500 lbs.
Track Length: 93" Hub Face to Hub Face
Spring Center: 75" - 83"
Overall Length: 97.75"
Spindle Size: 1-3/8" x 1-1/16" EZ-Lube Spindles
Brake Flange (Outside): 86-5/8"

Brand
Dexter Axle
Manufacturer Part Number
5361534
More Information
Product Name DEXTER 93" Round Tube Straight Trailer Axle (3,500 lb.) #5361534
