GOLD LINE Rolling Lobe Air Spring #G2298050400
Stock# 5351078
GOLD LINE™ Rolling Lobe Type Air Springs consist of the rubber bellows, bead plate, piston, and an optional internal bumper. Rolling lobe air springs provide the maximum ride comfort and therefore are the most popular air spring designs for commercial vehicle suspensions. Replaces the following OEM Part Numbers: Dayton 352-8050, Hendrickson S-4771, Hendrickson B-12514-013, Loadguard SC2052, Navistar/Fleetrite 1685174C1, Reyco 23631-01, Watson & Chalin AS-003, Triangle 8320, Goodyear 1R14-039, Firestone W01-358-8050 and Contitech.
SUPPLIES LIMITED
Special Price
$40.00
was
$140.95
SKU
5351078
GOLD LINE™ Rolling Lobe Type Air Springs consist of the rubber bellows, bead plate, piston, and an optional internal bumper. Rolling lobe air springs provide the maximum ride comfort and therefore are the most popular air spring designs for commercial vehicle suspensions.
Replaces the following OEM Part Numbers: Dayton 352-8050, Hendrickson S-4771, Hendrickson B-12514-013, Loadguard SC2052, Navistar/Fleetrite 1685174C1, Reyco 23631-01, Watson & Chalin AS-003, Triangle 8320, Goodyear 1R14-039, Firestone W01-358-8050 and Contitech.

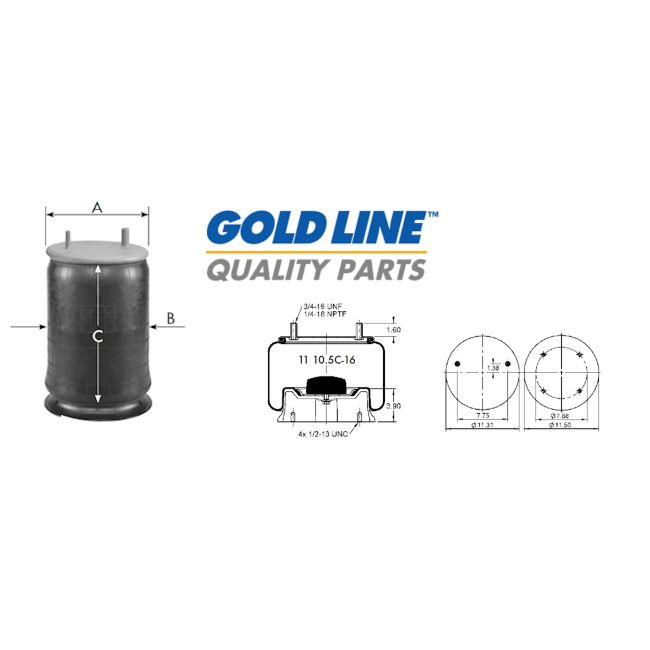

Specifications:
(A) Plate Diameter - 10"
(B) Molded Diameter - 10.5"
(C) Molded Height - 16"
Air inlet: 1/4” – 18 N.P.T.
Replaces the following OEM Part Numbers: Dayton 352-8050, Hendrickson S-4771, Hendrickson B-12514-013, Loadguard SC2052, Navistar/Fleetrite 1685174C1, Reyco 23631-01, Watson & Chalin AS-003, Triangle 8320, Goodyear 1R14-039, Firestone W01-358-8050 and Contitech.
Specifications:
(A) Plate Diameter - 10"
(B) Molded Diameter - 10.5"
(C) Molded Height - 16"
Air inlet: 1/4” – 18 N.P.T.
Load @ 80 psi: 8080
Load @ 100 psi: 10100
Natural Frequency (cpm): 82
Min. Height: 5.4"
Max. Height: 18.5"
Max. Diameter: 14.7"
Load @ 100 psi: 10100
Natural Frequency (cpm): 82
Min. Height: 5.4"
Max. Height: 18.5"
Max. Diameter: 14.7"
SUPPLIES LIMITED
Brand
Gold Line
Manufacturer Part Number
G2298050400
