GOLD LINE Rolling Lobe Air Spring #G2298204200
Stock# 5351062
GOLD LINE™ Rolling Lobe Type Air Springs consist of the rubber bellows, bead plate, piston, and an optional internal bumper. Rolling lobe air springs provide the maximum ride comfort and therefore are the most popular air spring designs for commercial vehicle suspensions. Replaces the following OEM Part Numbers: Binkley XB-SPN-053-37, SAF-HOLLAND 90557173, SAF-HOLLAND 9055722, Triangle 8484, Goodyear 1R12-508, Firestone W01-358-8204 and Contitech 9 10-12 P 484
SUPPLIES LIMITED
Special Price
$35.00
was
$115.50
SKU
5351062
GOLD LINE™ Rolling Lobe Type Air Springs consist of the rubber bellows, bead plate, piston, and an optional internal bumper. Rolling lobe air springs provide the maximum ride comfort and therefore are the most popular air spring designs for commercial vehicle suspensions.
Replaces the following OEM Part Numbers: Binkley XB-SPN-053-37, SAF-HOLLAND 90557173, SAF-HOLLAND 9055722, Triangle 8484, Goodyear 1R12-508, Firestone W01-358-8204 and Contitech 9 10-12 P 484

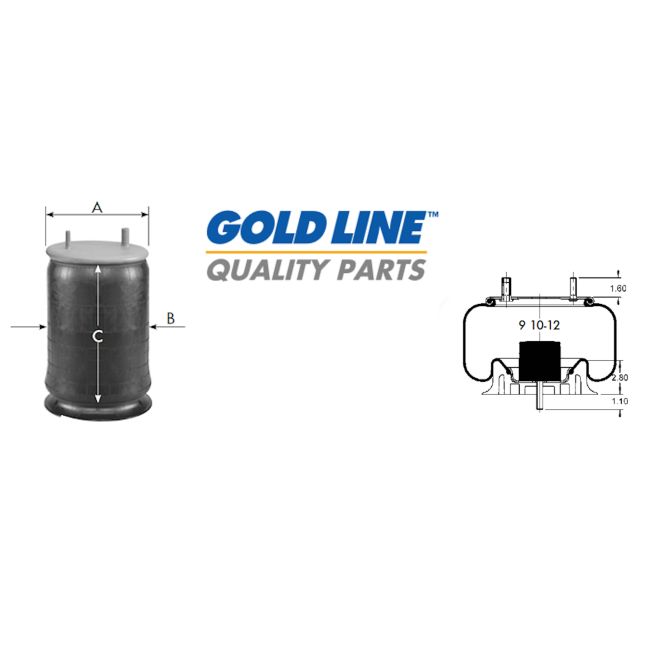

Specifications:
(A) Plate Diameter - 9"
(B) Molded Diameter - 10"
(C) Molded Height - 12"
Air inlet: 1/4” – 18 N.P.T.
Replaces the following OEM Part Numbers: Binkley XB-SPN-053-37, SAF-HOLLAND 90557173, SAF-HOLLAND 9055722, Triangle 8484, Goodyear 1R12-508, Firestone W01-358-8204 and Contitech 9 10-12 P 484
Specifications:
(A) Plate Diameter - 9"
(B) Molded Diameter - 10"
(C) Molded Height - 12"
Air inlet: 1/4” – 18 N.P.T.
Load @ 80 psi: 5000
Load @ 100 psi: 6930
Natural Frequency (cpm): 81
Min. Height: 4.5"
Max. Height: 14.8"
Max. Diameter: 12.6"
Load @ 100 psi: 6930
Natural Frequency (cpm): 81
Min. Height: 4.5"
Max. Height: 14.8"
Max. Diameter: 12.6"
SUPPLIES LIMITED
Brand
Gold Line
Manufacturer Part Number
G2298204200
| Product Name | GOLD LINE Rolling Lobe Air Spring #G2298204200 |
|---|
