GOLD LINE Rolling Lobe Air Spring #G2299270300
Stock# 5351065
GOLD LINE™ Rolling Lobe Type Air Springs consist of the rubber bellows, bead plate, piston, and an optional internal bumper. Rolling lobe air springs provide the maximum ride comfort and therefore are the most popular air spring designs for commercial vehicle suspensions. Replaces the following OEM Part Numbers: Hendrickson S-20010, Hendrickson S-25559, Volvo 85101147, Watson & Chalin AS-0084, Triangle 8433, Goodyear 1R13-119, Firestone W01-358-9270 and Contitech.
SUPPLIES LIMITED
Special Price
$50.00
was
$169.95
SKU
5351065
GOLD LINE™ Rolling Lobe Type Air Springs consist of the rubber bellows, bead plate, piston, and an optional internal bumper. Rolling lobe air springs provide the maximum ride comfort and therefore are the most popular air spring designs for commercial vehicle suspensions.
Replaces the following OEM Part Numbers: Hendrickson S-20010, Hendrickson S-25559, Volvo 85101147, Watson & Chalin AS-0084, Triangle 8433, Goodyear 1R13-119, Firestone W01-358-9270 and Contitech.

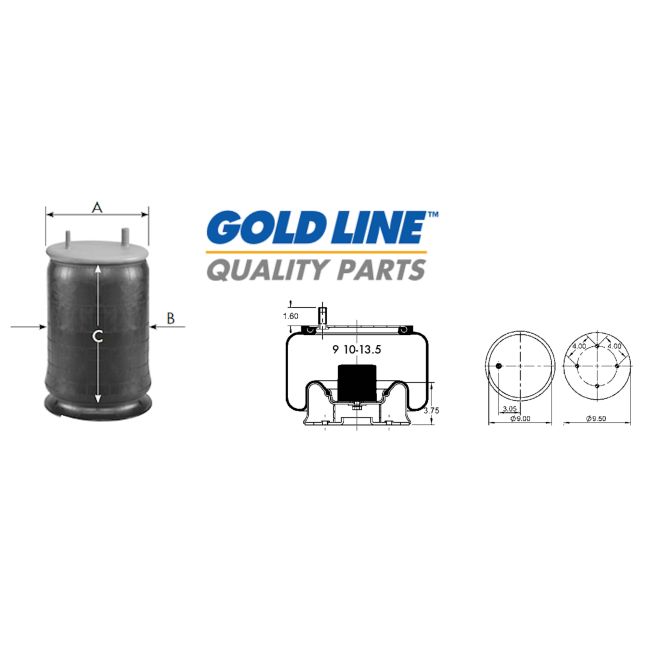

Specifications:
(A) Plate Diameter - 9"
(B) Molded Diameter - 10"
(C) Molded Height - 13"
Air inlet: 1/4” – 18 N.P.T.
Replaces the following OEM Part Numbers: Hendrickson S-20010, Hendrickson S-25559, Volvo 85101147, Watson & Chalin AS-0084, Triangle 8433, Goodyear 1R13-119, Firestone W01-358-9270 and Contitech.
Specifications:
(A) Plate Diameter - 9"
(B) Molded Diameter - 10"
(C) Molded Height - 13"
Air inlet: 1/4” – 18 N.P.T.
Load @ 80 psi: 6560
Load @ 100 psi: 8200
Natural Frequency (cpm): 83
Min. Height: 5.5"
Max. Height: 17.7"
Max. Diameter: 12.6"
Load @ 100 psi: 8200
Natural Frequency (cpm): 83
Min. Height: 5.5"
Max. Height: 17.7"
Max. Diameter: 12.6"
SUPPLIES LIMITED
Brand
Gold Line
Manufacturer Part Number
G2299270300
| Product Name | GOLD LINE Rolling Lobe Air Spring #G2299270300 |
|---|
