GOLD LINE Rolling Lobe Air Spring #G2299935200
Stock# 5351070
GOLD LINE™ Rolling Lobe Type Air Springs consist of the rubber bellows, bead plate, piston, and an optional internal bumper. Rolling lobe air springs provide the maximum ride comfort and therefore are the most popular air spring designs for commercial vehicle suspensions. Replaces the following OEM Part Numbers: SAF-HOLLAND 90557157, SAF-HOLLAND 90557301, Triangle 8548, Goodyear 1R12-532, Firestone W01-358-9935 and Contitech 9 10-17.5 P 548.
SUPPLIES LIMITED
Special Price
$40.00
was
$131.95
SKU
5351070
GOLD LINE™ Rolling Lobe Type Air Springs consist of the rubber bellows, bead plate, piston, and an optional internal bumper. Rolling lobe air springs provide the maximum ride comfort and therefore are the most popular air spring designs for commercial vehicle suspensions.
Replaces the following OEM Part Numbers: SAF-HOLLAND 90557157, SAF-HOLLAND 90557301, Triangle 8548, Goodyear 1R12-532, Firestone W01-358-9935 and Contitech 9 10-17.5 P 548.

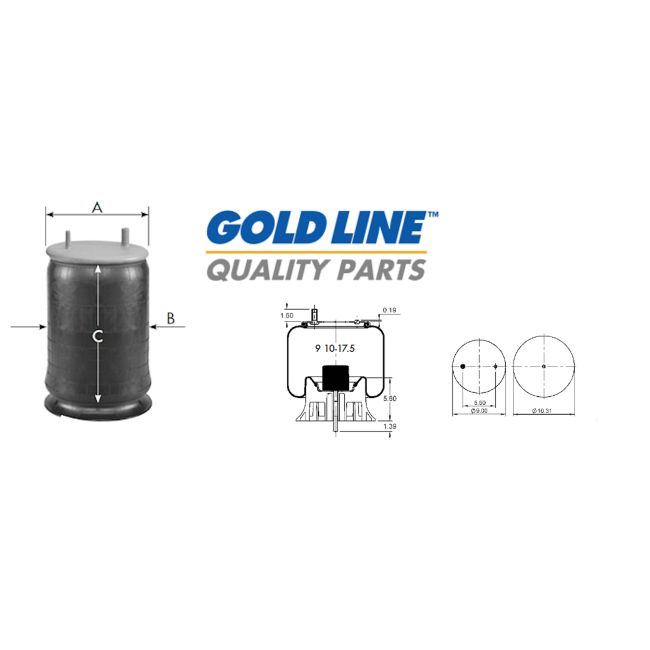

Specifications:
(A) Plate Diameter - 9"
(B) Molded Diameter - 10"
(C) Molded Height - 17.5"
Air inlet: 1/4” – 18 N.P.T.
Replaces the following OEM Part Numbers: SAF-HOLLAND 90557157, SAF-HOLLAND 90557301, Triangle 8548, Goodyear 1R12-532, Firestone W01-358-9935 and Contitech 9 10-17.5 P 548.
Specifications:
(A) Plate Diameter - 9"
(B) Molded Diameter - 10"
(C) Molded Height - 17.5"
Air inlet: 1/4” – 18 N.P.T.
Load @ 80 psi: 5680
Load @ 100 psi: 7100
Natural Frequency (cpm): 62
Min. Height: 7.3"
Max. Height: 23"
Max. Diameter: 12.6"
Load @ 100 psi: 7100
Natural Frequency (cpm): 62
Min. Height: 7.3"
Max. Height: 23"
Max. Diameter: 12.6"
SUPPLIES LIMITED
Brand
Gold Line
Manufacturer Part Number
G2299935200
