HAULMARK 86" Replacement Drop Axle, 70" S.C. (3,500 lb.) #200656-1P

Rating:
80 % of 100

Stock# 7125223

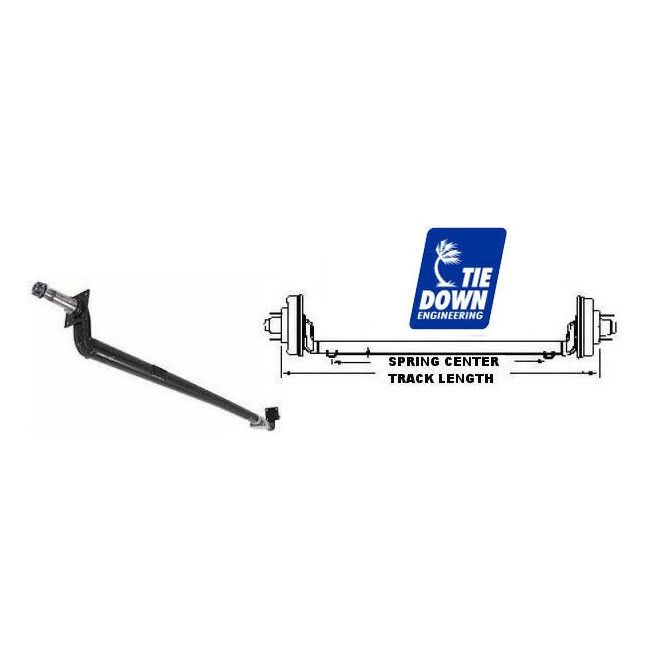

Aftermarket trailer axle designed for use with Haulmark utility & cargo trailers. Axle weldment includes seats. Pre-welded axle spring seats are designed to face downward for an under slung leaf spring mount. Black powder coated axle tube.
Overall Length = 91"  Hub Face = 86"  Spring Center = 70"

$259.00
SKU
7125223

Replacement aftermarket trailer axle designed specifically for use with Haulmark utility & enclosed cargo trailers. Axle weldment includes spring seats. Wheel hubs and bearings sold separately.

Axle Type: Round/Drop
Load Rating: 3,500 lbs
Drop: 4"
Track Length: 86" Hub Face to Hub Face
Spring Center: 70"
Overall Length: 91"
Outside to Outside Brake Flange: 79-1/8"
Spindle Size: 1-3/8" x 1-1/16" EZ-Lube Spindles

Note: Pre-welded axle spring seats are designed to face downward for an under slung leaf spring mount.

Brand
Dexter Marine
Manufacturer Part Number
200656-1P
More Information
Product Name HAULMARK 86" Replacement Drop Axle, 70" S.C. (3,500 lb.) #200656-1P
Write Your Own Review
You're reviewing:HAULMARK 86" Replacement Drop Axle, 70" S.C. (3,500 lb.) #200656-1P
Your Rating

TIE DOWN ENGINEERING

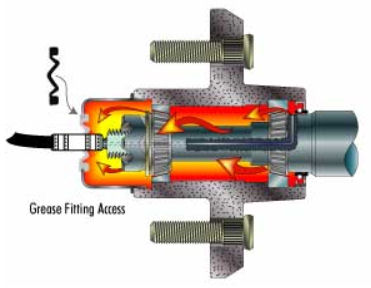

Super Lube Spindle - Access is made through a removable grommet on a superlube style dust cap. The spindle's internal grease channel allows for maximum flushing of the old grease while lubricating the system with new grease.

Simply attach a conventional grease gun to the spindle zerk fitting and pump slowly. As new grease is pumped into the inner bearing area, the old grease is forced outwards and can be removed from the dust cap chamber. After removing excess grease from the dust cap reservoir, replace the rubber expansion access cap and repacking is completed without the expense of a service center or removal of the wheel hub.

The Super Lube system provides for greater extended bearing life by thoroughly distributing grease throughout the hub cavity and eliminates the need to disassemble the hubs and repacking the wheel bearings.



 SuperLube Trailer Spindle
