Stock# 5419305

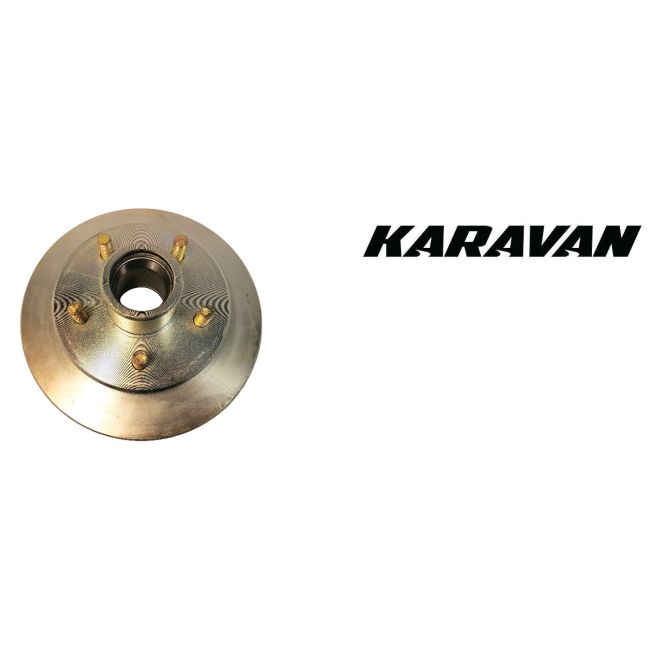

KARAVAN DB-35 cadmium plated disc brake rotor is made to UFP specs, vented to help shed heat, and can be used with trailer axles that have up to a 3,750 lb. capacity. They will accept 13" to 15" wheels. (Lug nuts, bearings and seal are sold separately)
KARAVAN DB-35 cadmium plated disc brake rotor is made to UFP specs, vented to help shed heat, and can be used with trailer axles that have up to a 3,750 lb. capacity. They will accept 13" to 15" wheels. (Lug nuts, bearings and seal are sold separately)
Spindle Size: 1-3/8" x 1-1/16" tapered
Diameter: 9-3/4"
Bolt circle: 5 on 4-1/2"
Inner Bearing: 1-3/8" (L68149)
Inner Race: L68110 (Included)
Outer Bearing: 1-1/16" (L44649)
Outer Race: L44610 (Included)
Seal: 2.56" x 1.72" For Karavan, use 2.56" x 1.68" for UFP
Minimum Thickness: 17mm
| Product Name | KARAVAN DB-35 10" Vented Disc Brake Rotor (5-Lug) #203-00077-MH |
|---|
