KARAVAN Trailer Brakes and Brake Parts

Stock# 5419308
KARAVAN model DB-35 style disc brake caliper was made to UFP specs, features a zinc plated body, double banjo fitting, stainless steel brake pad guides and anti-rattle clips which help provide superior corrosion resistance especially in salt water applications. It also includes pre-loaded organic brake pads.

Stock# 5419307
KARAVAN model DB-35 style disc brake caliper was made to UFP specs, features a zinc plated body, double banjo fitting, stainless steel brake pad guides and anti-rattle clips which help provide superior corrosion resistance especially in salt water applications. It also includes pre-loaded organic brake pads.

Stock# 5415029
UFP DB-35 zinc plated disc brake rotor is vented to help shed heat and can be used with trailer axles that have up to a 3,750 lb. capacity. They will accept 13" to 15" wheels. (Lug nuts, bearings and seal are sold separately)

Stock# 5419305
KARAVAN DB-35 cadmium plated disc brake rotor is made to UFP specs, vented to help shed heat, and can be used with trailer axles that have up to a 3,750 lb. capacity. They will accept 13" to 15" wheels. (Lug nuts, bearings and seal are sold separately)

Stock# 5415127
UFP DB-35 Ranger disc brake rotor is vented to help shed heat and can be used with trailer axles that have up to a 4,200 lb. capacity. They will accept 13" to 15" wheels. (Lug nuts, bearings and seal are sold separately)

Stock# 5419306
KARAVAN DB-35 cadmium plated disc brake rotor is made to UFP specs, is vented to help shed heat, and can be used with trailer axles that have up to a 5200 lb. capacity. They will accept 15" to 16" wheels. (Lug nuts, bearings and seal are sold separately)

Stock# 5415096
UFP A-75 series replacement inner member slide for hydraulic disc brakes fits into existing outer member housings and includes an electrical reverse lock-out solenoid that allows you to back-up without the brakes engaging. The A-75 also features plated internal parts for better corrosion resistance, sealed aluminum master cylinder, rubber boot installed on the push rod, lever lock latching mechanism and a 2-year limited warranty. Comes complete and ready to install. (For Single Axle Brake Systems Only)

Stock# 5415097
UFP A-75 series replacement inner member slide for tandem axle hydraulic disc brakes fits into existing outer member housings and includes an electrical reverse lock-out solenoid that allows you to back-up without the brakes engaging. The A-75 also features plated internal parts for better corrosion resistance, sealed aluminum master cylinder, rubber boot installed on the push rod, lever lock latching mechanism and a 2 year limited warranty. Comes complete and ready to install.

Stock# 5415034
UFP A-60 series replacement inner member slide for tandem axle hydraulic disc brakes fits into existing outer member housings and includes an electrical reverse lock-out solenoid that allows you to back-up without the brakes engaging. The A-60 also features plated internal parts for better corrosion resistance, sealed aluminum master cylinder, rubber boot installed on the push rod, the "Exclusive" UFP latching mechanism and it includes a 2 year limited warranty. Comes complete and ready to install.

Stock# 5415018

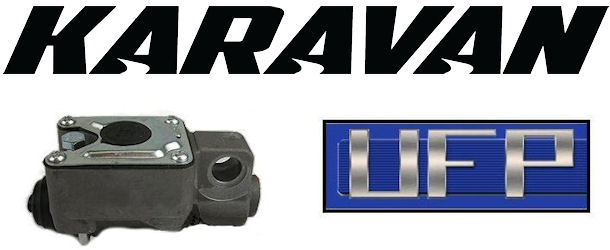

UFP Drum Brake Master Cylinder is compatible with the following hydraulic drum brake actuators: A-60, A-70, A-75, A-84 & A-160. It features an all aluminum design.

Stock# 5415042
Replacement Push Rod for UFP single disc or single/tandem drum brake actuators.

Stock# 5415043
Replacement Push Rod for UFP tandem disc brake actuators.

Stock# 5415048
Direct replacement plastic fill plug for all UFP brake master cylinders.

Stock# 5415007
This 2-1/2" plastic cap is a direct replacement for all A-60, A-65, A-75, and A-84 brake actuators. It is the outer access cap that covers the master cylinder fill plug.

Stock# 5415133
UFP disc brake caliper copper washer banjo fitting. Sold as each.

Stock# 5415004
UFP replacement disc brake pad set for Gold Series DB-35 disc brakes. Contains 2 inner and 2 outer pads for one complete axle.

Stock# 5415142
UFP 7/16"-20 x 1" disc brake caliper (DB-35) mounting bolt. Sold as each.

Stock# 5415134
UFP 7/16"-20 x 1" disc brake caliper (DB-35) banjo bolt. Sold as each.

Stock# 5415066
UFP Retaining Snap Ring is used in all UFP brake actuators and fits the 3/4" main pins.

Stock# 5415014
Replacement Latch / Hitch Pin Kit for A-84 and A-160 brake actuators.

Stock# 5419207
KARAVAN dealer lockout bracket will allow you to back your trailer over soft ground or up a hill without your brakes surging and was intended to be used with UFP brand actuators. This is intended for Dealer Lot use only.

Stock# 5415068
UFP zinc plated replacement break-away cable with s-hook and bracket for UFP Model A-60 hydraulic disc and drum brake actuators. Cable measures 17".

Stock# 5419206
KARAVAN lockout bracket will allows you to back your trailer over soft ground or up a hill without your brakes surging and was intended to be used with UFP brand actuators.

Stock# 5415040
UFP zinc plated replacement latch kit for UFP Model A-60 hydraulic brake actuators.

Stock# 5415055
UFP disc brake caliper mounting adapter bracket for 5,200-7,000 lb. axles bolts to standard 5 hole brake flange.  S-Cad plated to resist corrosion.
