Stock# 5419306

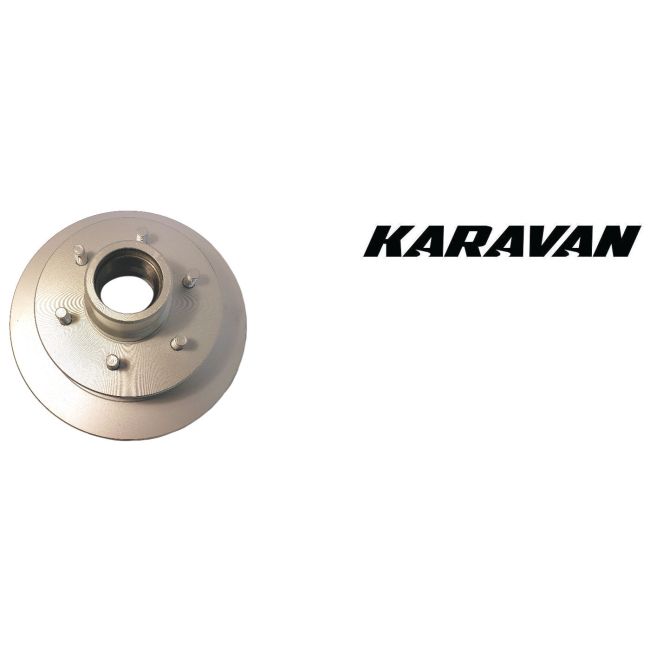

KARAVAN DB-35 cadmium plated disc brake rotor is made to UFP specs, is vented to help shed heat, and can be used with trailer axles that have up to a 5200 lb. capacity. They will accept 15" to 16" wheels. (Lug nuts, bearings and seal are sold separately)
KARAVAN DB-35 cadmium plated disc brake rotor is made to UFP specs, is vented to help shed heat, and can be used with trailer axles that have up to a 5200 lb. capacity. They will accept 15" to 16" wheels. (Lug nuts, bearings and seal are sold separately)
Spindle Size: 1-3/4" (25580) x 1-1/4" (LM60748) tapered
Diameter: 11-1/2"
Bolt circle: 6 on 5-1/2"
Inner Bearing: 1-3/4" (25580)
Inner Race: 25520 (Included)
Outer Bearing: 1-1/4" (15123)
Outer Race: 15245 (Included)
Seal: 3.38" x 2.13"
Minimum Thickness: 17mm
| Product Name | KARAVAN DB-35 12" Vented Disc Brake Rotor (6-Lug) #203-00139-MH |
|---|
