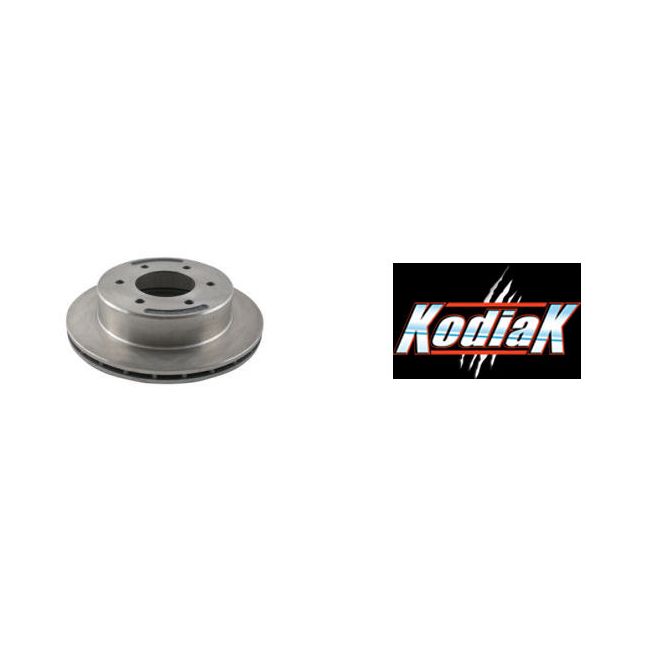

KODIAK 12" Vented 'Slip On' Style Rotor, S.S #070-RTR-12-SS

Stock# 1561044
KODIAK 12" Stainless Steel Vented 'Slip On' style rotors. Stainless steel offers the best protection for salt water applications (i.e., during a standard salt spray test, rust to begin forming in excess of 1,000 hours).
Hub not included.

$482.90

SKU

1561044

Details

KODIAK 12" Stainless Steel Vented 'Slip On' style rotors.
Stainless Steel offers the best protection for salt water applications (i.e., during a standard salt spray test, rust to begin forming in excess of 1,000 hours). The 'Slip On' style Rotor is cast as a single unit and slips onto a standard 6 on 5.5" hub. Having the 'Slip On' style disc brake assembly allows you to replace a rotor without having to remove the hub or bearings.

Note: Slip on Rotors will not work with caliper mounting bracket that is designed for use with integral rotor/hubs.

ROTOR DIAMETER: 12" VENTED
REPLACES DRUM DIAMETER: 12"
# OF STUDS: 6 @ 1/2" diameter
BOLT CIRCLE: 5.5" (15" & Larger Wheels)
AXLE RATING: 5,200 - 6,000 lbs.
WARRANTY: 3 Year
CAN BE USED WITH ELECTRIC-OVER-HYDRAULIC ACTUATORS

Hubs (Not Included) require a minimum stud length of 1-1/4" for standard steel trailer rims, aluminum rims may require longer studs.
